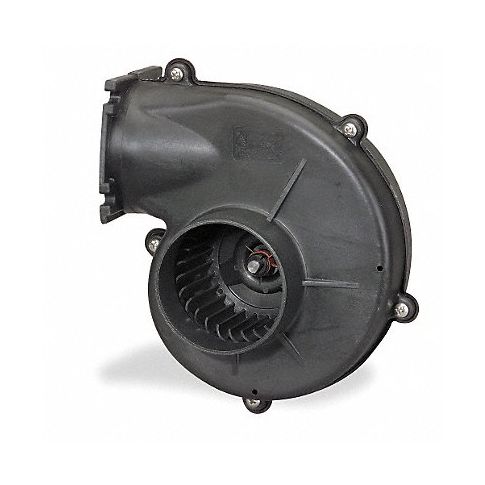

Blower 100 cfm 115V 0.7A 2870 rpm MPN:34744-7000
Blower 100 cfm 115V 0.7A 2870 rpm
Jabsco's OEM Blower is an ideal choice for non-continuous duty applications such as emergency backup ventilation, portable equipment, and recreational vehicles. This blower comes with a round outlet shape that provides high output even in complex installations with longer ducting lengths or multiple bends. Its corrosion-resistant materials ensure durability while the slip-on inlet ducting connection makes for easy installation. The low current draw also adds to its energy efficiency, making it an excellent choice for various applications. This blower is not recommended to be installed near direct heat exceeding 130F.
Top product features:
- Corrosion-resistant materials
- Slip-on inlet ducting connection
- Low current draw
Top product applications:
- Emergency backup ventilation
- Portable equipment cooling/drying
- Marine, motor, or recreational vehicle air circulation
The JABSCO flange-mount plastic blower features a radial design that gives high output even in complex installations with longer ducting lengths and/or multiple bends in the ducting. Duct blower features corrosion-resistant materials throughout, low current draw, and slip-on inlet ducting connection. Blower should not be installed close to sources of direct heat exceeding 130°F. Designed for noncontinuous-duty applications such as emergency backup ventilation portable equipment, and marine, motor, or recreational vehicles.
Technical Specifications
- Item OEM Blower
- Blower Outlet Shape Round
- With Flange Yes
- Blower Wheel Diameter 3 1/4 in
- Blower Wheel Width 1 15/16 in
- Blower Item Plastic Blower
- Blower Voltage 115V AC
- Blower Motor Type Shaded Pole
- Blower Thermal Protection Auto
- Blower Conduit Box No
- CFM @ 0.000-In. SP 100
- CFM @ 0.200-In. SP 75
- CFM @ 0.400-In. SP 56
- CFM @ 0.600-In. SP 14
- Hz 60
- Phase 1
- Full Load Amps 0.70
- RPM 2870
- Bearing Type Sleeve
- Motor Enclosure Open Dripproof
- Lead Length 13 in
- Max. Ambient Temp. 130 Degrees F
- Max. Inlet Temp. 104 Degrees F
- Inlet Dia. 3 in
- Outlet Dia. 2 5/8 in
- Overall Height 7 5/8 in
- Overall Width 7 in
- Overall Depth 6 5/8 in
- Wheel Type Forward Curve
- Drive Type Direct
- Mounting Position Shaft Horizontal
- Housing Material Reinforced Plastic
- Agency Compliance NMMA
Manufacturer Details
- Manufacturer: Jabsco
- Condensed Mfg Number: 347447000
- MPN: 34744-7000
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414599080
- GDS Category Name: Centrifugal Blowers with Motor
- GDS Family Name: Industrial Blowers and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Blowers
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:11pm UTC
Category: Industrial Blowers and Accessories
