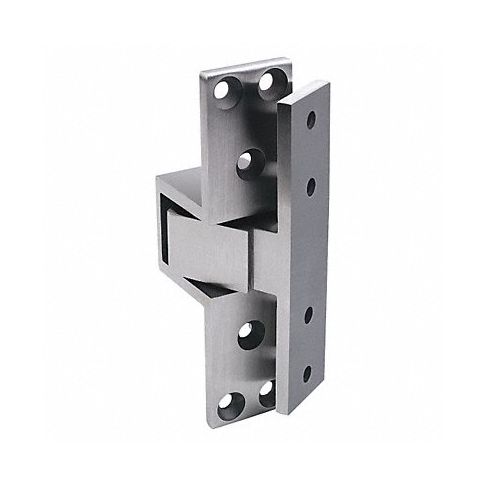

Pocket Pivot Hinge Full Mortise 90 lb. MPN:91105F US32D

When you're mounting heavier doors, especially in high-traffic areas that require some sort of traffic control, the 90° range of motion on this Ives pivot hinge helps slow foot traffic through doorways in environments that require better traffic control. Use 2 hinges for doors up to 7-ft., for doors over 7 ft., use 3. Maximum door load 90 lb. per hinge. UL Listed for use with 3-hr. fire doors or 20-min. wood fire doors.

Technical Specifications

• Item Pivot Hinge
• Material Brass
• Finish Stainless Steel
• Load Capacity 90.0 lb
• Holes With
• Holes per Leaf 4
• Ligature Resistant No
• Range of Motion 90 Degrees
• Orientation Non Handed
• Door Leaf Thickness 0.25 in
• Frame Leaf Thickness 0.25 in
• Required Door Thickness 1 3/4 in
• Bearing Type Sleeve
• Corners Square
• Hardware Included
• Mounting Full Mortise
• Pin Material Stainless Steel
• Pin Type Nonremovable
• Standards ANSI A156.4
• Door Leaf Height 6 in
• Door Leaf Width 1 3/8 in
• Frame Leaf Height 6 in

Manufacturer Details

• Manufacturer: Ives
• Condensed Mfg Number: 91105FUS32D
• MPN: 91105F US32D

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CA
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8301406030
• GDS Category Name: Pivot Hinges
• GDS Family Name: Latches Hasps and Hinges
• GDS Segment Name: Hardware
• UNSPSC: 31162403
• UNSPSC Class ID: 24
• UNSPSC Commodity Name: Miscellaneous fasteners
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Hinges
• UNSPSC Family ID: 16
• UNSPSC Family Name: Hardware
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
