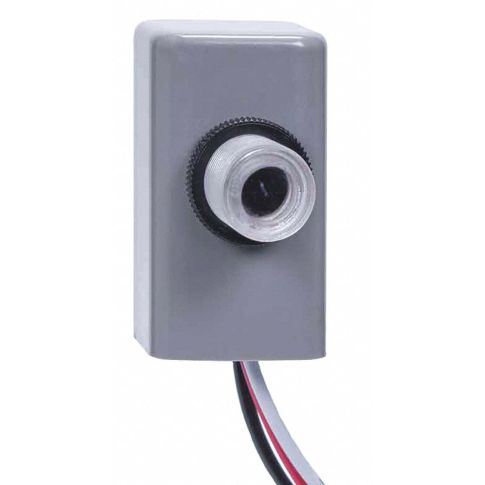

Photocontrol 3/8 -18 NPSM Thread Mount MPN:EK4036S
Install the Intermatic NightFox Electronic photocontrol in outdoor electrical boxes, in-wall boxes, or outdoor lighting fixtures to maximize energy savings and extend the life of your LED light fixtures. The solid state light sensor accurately detects darkness for precise control, automatically turning lights on at sundown and off at sunrise. This fixed-mount style photocontrol is designed to fit fixtures with 3/8 NPSM thread knockouts. Save energy, reduce utility costs, and experience hassle-free lighting management in outdoor areas such as parking lots, pathways, entrances, and exits, while benefiting from a user-friendly solution that requires minimal maintenance. Upgrade to an environmentally responsible and cost-effective lighting system with the Intermatic NightFox Electronic photocontrol.
Top product features:
- Automatic on/off functionality based on light detection for energy savings
- Fixed-mount design for easy installation in fixtures with knockouts
- Solid state light sensor for precise control and reliable performance
Top product applications:
- Outdoor lighting fixtures in areas such as parking lots, pathways and entrance/exit points
- In-wall boxes for security lighting systems
- Electronic photocontrols for LED bulb-based fixtures to reduce energy costs and increase efficiency.
Technical Specifications
- Item Photocontrol
- Mounting 3/8"-18 NPSM Thread
- Voltage 105 to 305V AC
- Max. Wattage 1,000
- Max. Incandescent Amps 15.0
- Max. Ballast Amps 8.3
- Foot Candles On 1.5
- Foot Candles Off 2.25
- Color Gray
- Temp. Range -40 Degrees to 158 Degrees F
- Length 2 1/4 in
- Width 1 1/3 in
- Depth 1 1/4 in
- Enclosure Type Raintight
- Contact Form SPST
- Housing Material Plastic
- Setting Dusk to Dawn
- For Use With Flood Lights, Security Lighting
- Description/Special Features LED Compatible
- Standards ANSI C136.24, CSA C22.2 No. 55-M1986/TIL -15, UL773
- Includes Light Shield, Mounting Hardware
- Manufacturers Warranty Length 8 yr
Manufacturer Details
- Manufacturer: Intermatic
- Condensed Mfg Number: EK4036S
- MPN: EK4036S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509065
- GDS Category Name: Lighting Photocontrols
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121524
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 24
- UNSPSC Commodity Name: Photocontrols
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
