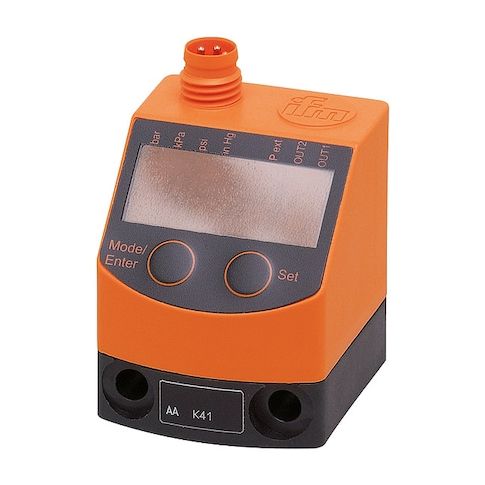

Pressure Switch, Standard, 2SPST, G1/8 BSP, -14.5 to 145 psi Range MPN:PQ7834
Pressure Switch, Standard, 2SPST, G1/8 BSP, -14.5 to 145 psi Range
This IFM digital pressure sensor is a versatile and reliable solution for a wide range of applications, including industrial automation, process control, and monitoring systems. Its compact design and IP65 rating make it suitable for use in harsh environments, while its 2SPST configuration and adjustable set points provide flexibility and precision. With a pressure range of -14.5 to 145 psi and a burst pressure of 435 psi, this sensor can handle demanding applications. Its compatibility with air and ability to operate in a wide temperature range (13-176°F) make it an ideal choice for various industries, including oil and gas, chemical, and pharmaceutical.
Top product features:
- Pressure range of -14.5 to 145 psi allows for precise measurement in a variety of applications.
- SPST (Single Pole Single Throw) contact form enables reliable switching in a compact design.
- G1/8 BSP process connection provides a secure and leak-resistant connection to various piping systems.
Top product applications:
- Pressure Switch for HVAC systems to monitor and control pressure levels in heating and cooling systems.
- Pressure Switch for industrial processes to control and monitor pressure levels in applications such as oil and gas, chemical processing, and power generation.
- Pressure Switch for laboratory equipment to monitor and control pressure levels in applications such as vacuum chambers, gas cylinders, and pressure vessels.
Digital Pressure Sensor, Power Required 18 to 32V DC, Range -14.5 psi Vac to 145 psi, Compatible With Air, Circuit Type PNP, Output Current 100 mA, Contact Form SPST, On Set Point -13 to 145 psi, Off Set Point -14 to 144 psi, Burst Pressure 435 psi, Process Connection G1/8, IP Rating IP65, Housing Material FKM, PBT, Polyester, Wetted Materials Brass, FKM, PBT, Silicon, Electrical Connection 4 Pin M8 Connector, Temp. Range 13 Degrees to 176 Degrees F
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 3.40
- Package Height: 1.80
- Package Weight: 0.19
Product info last updated on March 23, 2026 5:22am UTC
Category: Industrial Electrical Controls and Automation
