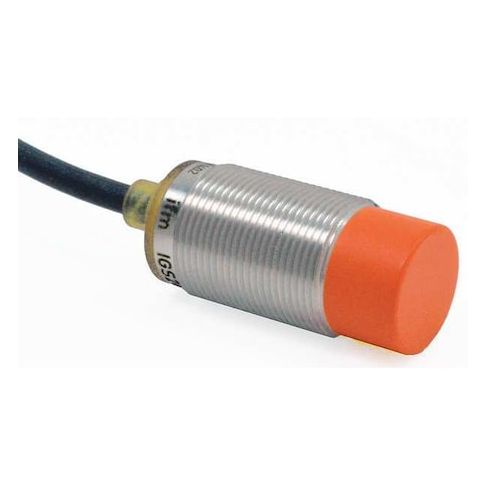

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Unshielded MPN:IGS255
SKU
510-G0527856
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Unshielded
This cylindrical inductive proximity sensor is designed for use in a variety of applications, including industrial automation, robotics, and material handling. With a compact 18mm diameter and 45mm length, it is easily integrated into tight spaces. The sensor operates at a frequency of 300Hz and features a 3-wire NPN output circuit. It is rated for use in harsh environments, with an operating temperature range of -40 to 185°F and IP65-69K ratings. The sensor is ideal for detecting metal objects up to 12mm away, making it suitable for applications such as door and gate sensors, conveyor belt monitoring, and robotic arm control.
Top product features:
- Cylindrical design allows for easy installation in tight spaces
- Operating frequency of 300 Hz enables high-speed detection
- Max. detecting distance of 12 mm allows for precise object detection
Top product applications:
- Material Handling and Automation
- Automotive Manufacturing
- Food and Beverage Processing
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 300 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NC, IP Rating IP65, IP66, IP67, IP68, IP69K, Case Material Brass White Bronze Coated, Length 45 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 0.01
- Package Weight: 0.10
Product info last updated on January 15, 2026 3:03pm UTC
Category: Industrial Electrical Controls and Automation
