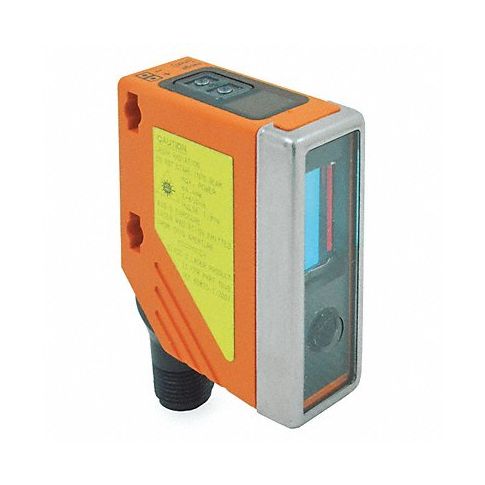

Rectangular Distance Sensors MPN:O5D101
Introducing Rectangular Distance Sensors from Ifm - your ideal solution for non-contact distance measurements in a compact, rectangular design! These sensors offer precise measurements ranging from 0.03 to 2 meters, making them suitable for a wide range of applications. The power requirement of these sensors is between 10 to 30V DC, ensuring seamless integration into your existing setup. With PNP circuit type and NO/NC output mode, these sensors provide versatility in installation and operation. Their durable design makes them ideal for harsh industrial environments, while their ease of use makes them suitable for hobbyists and DIY enthusiasts alike! Get yours today and start experiencing the benefits of precise distance measurements with Rectangular Distance Sensors from Ifm!
Top product features:
- Rectangular design
- Measurement range of 0.03 to 2 meters
- PNP circuit type and NO/NC output mode
Top product applications:
- Distance measurement in manufacturing or assembly lines for proper alignment and calibration
- Automated material handling systems for object detection and positioning
- Robotics and automation to avoid collisions or obstructions
Technical Specifications
- Item Rectangular Distance Sensor
- Measurement Range 0.03 to 2m
- Power Requirement 10 to 30V DC
- Circuit Type PNP
- Output Mode NO/NC
- Shielded / Unshielded Unshielded
- IP Rating 65, 67K
- Electrical Connection M12 Connector
- Case Material Polyamide
- Length 56 mm
- Width 18.2 mm
- Depth 46.8 mm
- Operating Frequency 33 Hz
- Operating Temp. Range -25 to 60 Degrees C
- Max. Current Load 0.02 mA
- Standards cULus
Manufacturer Details
- Manufacturer: IFM
- Condensed Mfg Number: O5D101
- MPN: O5D101
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: DE
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509020
- GDS Category Name: Optical Distance Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 41111926
- UNSPSC Class ID: 19
- UNSPSC Commodity Name: Indicating and recording instruments
- UNSPSC Commodity ID: 26
- UNSPSC Commodity Name: Proximity sensors
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
