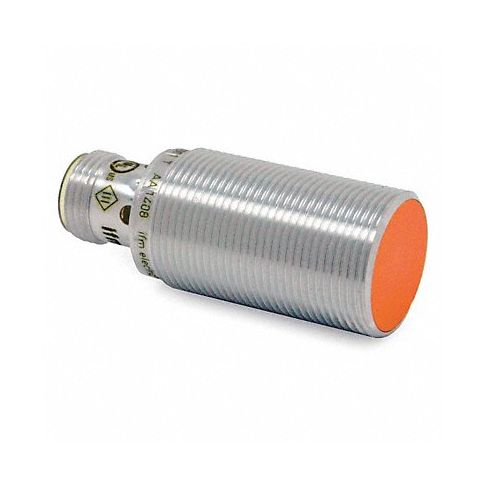

Proximity Sensor Inductive 8mm PNP NO QD MPN:IGS236
The Ifm Proximity Sensor Inductive 8mm PNP NO QD is an ideal solution for non-contact detection and position sensing in a range of industrial applications. Its extended sensing range makes it suitable for detecting metal objects in challenging environments where traditional proximity sensors may fail. The robust housing design ensures durability and resistance to mechanical damage, reducing the risk of downtime due to sensor failure. With four visible LED outputs for status indication and simplified troubleshooting, this proximity sensor offers reliable operation and ease of use. Applications include part-presence detection in assembly lines, object recognition in robotics, and liquid level monitoring in manufacturing processes. In summary, the Ifm Proximity Sensor Inductive 8mm PNP NO QD delivers exceptional performance, durability, and versatility to help users achieve optimal results in their applications.
Top product features:
- Proximity sensing method Inductive
- Extended sensing range
- Robust housing design
Top product applications:
- Part-presence detection in assembly lines
- Object recognition in robotics systems
- Liquid level monitoring in manufacturing processes
Technical Specifications
- Item Cylindrical Proximity Sensor
- Proximity Sensing Method Inductive
- Proximity Sensor Diameter 18.0 mm
- Proximity Sensor Power Requirement 10 to 30V DC
- Shielded / Unshielded Shielded
- Proximity Sensor Operating Frequency 400 Hz
- Proximity Sensor Output Circuit Type 3 Wire PNP
- Max. Detecting Distance 8.0 mm
- Proximity Sensor Electrical Connection 4 Pin M12 Connector
- Basic Proximity Sensor Case Material Metal
- Output Mode NO
- IP Rating 65, 66, 67, 68, 69K
- Case Material Brass White Bronze Coated
- Length 45 mm
- Operating Temp. Range -40 Degrees to 185 Degrees F
- Max. Current Load 100mA
- Description/Special Features Overload And Short Protection
- Standards cUL Listed
- Includes (2) Lock Nuts
Manufacturer Details
- Manufacturer: IFM
- Condensed Mfg Number: IGS236
- MPN: IGS236
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: DE
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509020
- GDS Category Name: Cylindrical Proximity Sensors and Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 41111926
- UNSPSC Class ID: 19
- UNSPSC Commodity Name: Indicating and recording instruments
- UNSPSC Commodity ID: 26
- UNSPSC Commodity Name: Proximity sensors
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
