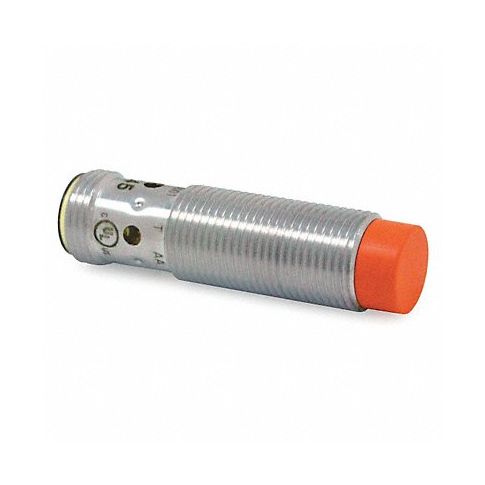

Proximity Sensor Inductive 7mm PNP NO QD MPN:IFS245
Proximity Sensor Inductive 7mm PNP NO QD
Our Proximity Sensor Inductive 7mm PNP NO QD is an ideal solution for a wide range of industrial applications requiring noncontact detection of metal targets. Its extended sensing range ensures accurate detection even at longer distances while the robust housing design offers increased durability against mechanical damage. The device features easy-to-read LED outputs to simplify troubleshooting and 4 visible status indicators for quick reference. With its many benefits and wide applications, this inductive proximity sensor is perfect for a variety of position sensing and part presence detection needs in factories, assembly lines, and other industrial settings.
Top product features:
- Extended sensing range
- Robust housing design to reduce failure from mechanical damage in industrial applications
- Visible LED outputs for status and simplified troubleshooting
Top product applications:
- Automated manufacturing processes for detecting and tracking parts in assembly lines
- Inventory management to detect the presence or absence of objects on storage shelves or containers
- Quality control systems for monitoring equipment movement during production to ensure proper functioning
This inductive proximity sensor is designed for noncontact detection of metal targets in position-sensing applications and part-presence applications. It features an extended sensing range and robust housing design to reduce failure from mechanical damage in industrial applications. It also features 4 visible LED outputs to indicate status and simplify troubleshooting.
Technical Specifications
- Item Cylindrical Proximity Sensor
- Proximity Sensing Method Inductive
- Proximity Sensor Diameter 12.0 mm
- Proximity Sensor Power Requirement 10 to 30V DC
- Shielded / Unshielded Unshielded
- Proximity Sensor Operating Frequency 700 Hz
- Proximity Sensor Output Circuit Type 3 Wire PNP
- Max. Detecting Distance 7.0 mm
- Proximity Sensor Electrical Connection 4 Pin M12 Connector
- Basic Proximity Sensor Case Material Metal
- Output Mode NO
- IP Rating 65, 66, 67, 68, 69K
- Case Material Brass White Bronze Coated
- Length 45 mm
- Operating Temp. Range -40 Degrees to 185 Degrees F
- Max. Current Load 100mA
- Description/Special Features Overload And Short Protection
- Standards cUL Listed
- Includes (2) Lock Nuts
Manufacturer Details
- Manufacturer: IFM
- Condensed Mfg Number: IFS245
- MPN: IFS245
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: DE
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509020
- GDS Category Name: Cylindrical Proximity Sensors and Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 41111926
- UNSPSC Class ID: 19
- UNSPSC Commodity Name: Indicating and recording instruments
- UNSPSC Commodity ID: 26
- UNSPSC Commodity Name: Proximity sensors
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:15pm UTC
Category: Switches
