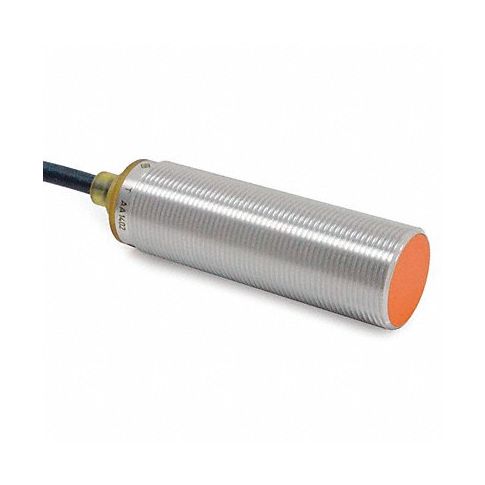

Proximity Sensor Inductive 8mm PNP NO MPN:IGS244
The IFM Proximity Sensor Inductive 8mm PNP NO is an advanced noncontact detection sensor designed for a range of position-sensing and part-presence applications in industrial settings. Featuring an extended sensing range, robust housing design, and visible LED outputs to indicate status and simplify troubleshooting, this proximity sensor offers exceptional reliability and durability. Its cylindrical design measures 18 mm in diameter and is powered by 10 to 30V DC voltage. With its inductive sensing method, the Proximity Sensor Inductive 8mm PNP NO can accurately detect metal targets in a range of applications, including position-sensing, part presence detection, object recognition, and more. The product's durability and long-lasting performance make it an ideal solution for harsh industrial environments where reliability and dependability are crucial. Whether you're automating manufacturing processes or optimizing assembly lines, this proximity sensor offers versatile functionality and exceptional value to enhance your operations.
Top product features:
- Extended sensing range
- Robust housing design for durability and reliability
- Visible LED outputs to indicate status and simplify troubleshooting
Top product applications:
- Position-sensing applications in industrial settings
- Part presence detection in manufacturing processes
- Object recognition in automated systems
Technical Specifications
- Item Cylindrical Proximity Sensor
- Proximity Sensing Method Inductive
- Proximity Sensor Diameter 18.0 mm
- Proximity Sensor Power Requirement 10 to 30V DC
- Shielded / Unshielded Shielded
- Proximity Sensor Operating Frequency 400 Hz
- Proximity Sensor Output Circuit Type 3 Wire PNP
- Max. Detecting Distance 8.0 mm
- Proximity Sensor Electrical Connection 2m Cable
- Basic Proximity Sensor Case Material Metal
- Output Mode NO
- IP Rating 65, 66, 67, 68, 69K
- Case Material Brass White Bronze Coated
- Length 60 mm
- Operating Temp. Range -40 Degrees to 185 Degrees F
- Max. Current Load 100mA
- Description/Special Features Overload And Short Protection
- Standards cUL Listed
- Includes (2) Lock Nuts
Manufacturer Details
- Manufacturer: IFM
- Condensed Mfg Number: IGS244
- MPN: IGS244
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: DE
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509020
- GDS Category Name: Cylindrical Proximity Sensors and Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 41111926
- UNSPSC Class ID: 19
- UNSPSC Commodity Name: Indicating and recording instruments
- UNSPSC Commodity ID: 26
- UNSPSC Commodity Name: Proximity sensors
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on January 25, 2024 1:51pm UTC Category: Switches
