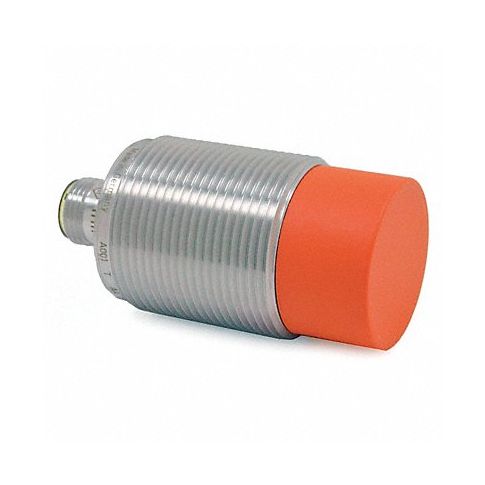

Prox Sensor Inductive 22mm PNP NC QD MPN:IIS236
Looking for an industrial-grade proximity sensor that can stand up to the harshest conditions? Look no further than Ifm's Prox Sensor Inductive 22mm PNP NC QD! Designed for noncontact detection of metal targets in position-sensing applications and part-presence applications, this sensor features a robust housing design to reduce failure from mechanical damage. With an extended sensing range and visible LED outputs for status indication, this sensor is ideal for use in a variety of industries including automotive, manufacturing, and material handling. The Prox Sensor Inductive 22mm PNP NC QD offers several mounting options and easy troubleshooting with its visible LED outputs, making it an essential tool for any industrial setting where part presence needs to be detected accurately.
Top product features:
- Extended sensing range
- Robust housing design
- Visible LED outputs for status indication
Top product applications:
- Industrial automation and robotics
- Material handling equipment
- Quality control in manufacturing
Technical Specifications
- Item Cylindrical Proximity Sensor
- Proximity Sensing Method Inductive
- Proximity Sensor Diameter 30.0 mm
- Proximity Sensor Power Requirement 10 to 30V DC
- Shielded / Unshielded Unshielded
- Proximity Sensor Operating Frequency 100 Hz
- Proximity Sensor Output Circuit Type 3 Wire PNP
- Max. Detecting Distance 22.0 mm
- Proximity Sensor Electrical Connection 4 Pin M12 Connector
- Basic Proximity Sensor Case Material Metal
- Output Mode NC
- IP Rating 65, 66, 67, 68, 69K
- Case Material Brass White Bronze Coated
- Length 60 mm
- Operating Temp. Range -40 Degrees to 185 Degrees F
- Max. Current Load 100mA
- Description/Special Features Overload And Short Protection
- Standards cUL Listed
- Includes (2) Lock Nuts
Manufacturer Details
- Manufacturer: IFM
- Condensed Mfg Number: IIS236
- MPN: IIS236
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: DE
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509020
- GDS Category Name: Cylindrical Proximity Sensors and Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 41111926
- UNSPSC Class ID: 19
- UNSPSC Commodity Name: Indicating and recording instruments
- UNSPSC Commodity ID: 26
- UNSPSC Commodity Name: Proximity sensors
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
