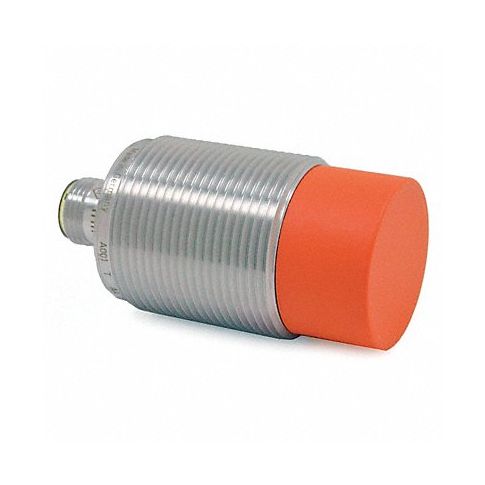

Prox Sensor Inductive 22mm PNP NO QD MPN:IIS227
Introducing the Prox Sensor Inductive 22mm PNP NO QD from Ifm - a versatile and reliable solution for noncontact detection in industrial applications. Featuring an extended sensing range and robust housing design, this sensor is perfect for position-sensing and part-presence applications. With its 4 visible LED outputs, it's easy to troubleshoot any issues that may arise. The cylindrical design allows for use in tight spaces while the inductive method ensures accurate readings. Whether you're detecting metal targets or tracking the presence of parts, the Prox Sensor Inductive 22mm PNP NO QD is a must-have tool for your industrial setting. Say goodbye to mechanical failure and hello to reliable detection with this high-performance proximity sensor from Ifm.
Top product features:
- Extended sensing range
- Robust housing design
- Four visible LED outputs
Top product applications:
- Detection of metal objects in industrial environments
- Position-sensing in automation and robotics systems
- Presence detection for parts assembly or packaging lines
Technical Specifications
- Item Cylindrical Proximity Sensor
- Proximity Sensing Method Inductive
- Proximity Sensor Diameter 30.0 mm
- Proximity Sensor Power Requirement 10 to 30V DC
- Shielded / Unshielded Unshielded
- Proximity Sensor Operating Frequency 100 Hz
- Proximity Sensor Output Circuit Type 3 Wire PNP
- Max. Detecting Distance 22.0 mm
- Proximity Sensor Electrical Connection 4 Pin M12 Connector
- Basic Proximity Sensor Case Material Metal
- Output Mode NO
- IP Rating 65, 66, 67, 68, 69K
- Case Material Brass White Bronze Coated
- Length 60 mm
- Operating Temp. Range -40 Degrees to 185 Degrees F
- Max. Current Load 100mA
- Description/Special Features Overload And Short Protection
- Standards cUL Listed
- Includes (2) Lock Nuts
Manufacturer Details
- Manufacturer: IFM
- Condensed Mfg Number: IIS227
- MPN: IIS227
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: DE
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509020
- GDS Category Name: Cylindrical Proximity Sensors and Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 41111926
- UNSPSC Class ID: 19
- UNSPSC Commodity Name: Indicating and recording instruments
- UNSPSC Commodity ID: 26
- UNSPSC Commodity Name: Proximity sensors
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
