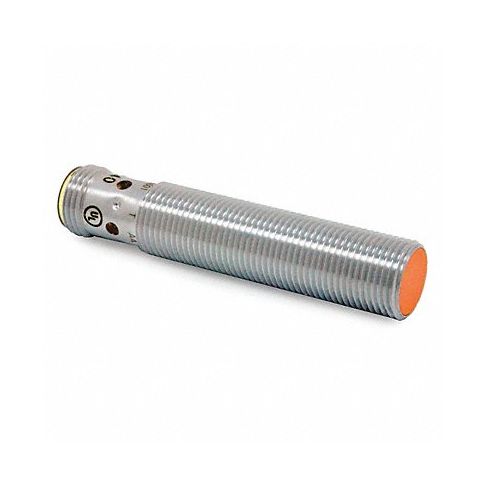

Proximity Sensor Inductive 4mm NPN NO QD MPN:IFS242
SKU
226-CXG-40KH14
Proximity Sensor Inductive 4mm NPN NO QD
The IFM Inductive Proximity Sensor is a high-quality detection device designed for reliable and accurate non-contact detection of metal objects in industrial environments. Featuring an extended sensing range of up to 12 mm, this sensor is perfect for applications that require precise position-sensing or part presence detection. The robust housing design ensures durability and resistance to mechanical damage, while the visible LED outputs provide clear status indication for easy troubleshooting. With a diameter of 4mm and a power requirement of 10-30V DC, this inductive proximity sensor is an ideal solution for various electrical applications, making it an essential tool for engineers, technicians, and industry professionals.
Top product features:
- Extended sensing range
- Robust housing design for durability
- Visible LED outputs for status indication and troubleshooting
Top product applications:
- Position-sensing in assembly or automation systems
- Part presence detection in equipment and machinery
- Object detection and distance measurement in robotics and automation
This inductive proximity sensor is designed for noncontact detection of metal targets in position-sensing applications and part-presence applications. It features an extended sensing range and robust housing design to reduce failure from mechanical damage in industrial applications. It also features 4 visible LED outputs to indicate status and simplify troubleshooting.
Technical Specifications
- Item Cylindrical Proximity Sensor
- Proximity Sensing Method Inductive
- Proximity Sensor Diameter 12.0 mm
- Proximity Sensor Power Requirement 10 to 30V DC
- Shielded / Unshielded Shielded
- Proximity Sensor Operating Frequency 700 Hz
- Proximity Sensor Output Circuit Type 3 Wire NPN
- Max. Detecting Distance 4.0 mm
- Proximity Sensor Electrical Connection 4 Pin M12 Connector
- Basic Proximity Sensor Case Material Metal
- Output Mode NO
- IP Rating 65, 66, 67, 68, 69K
- Case Material Brass White Bronze Coated
- Length 60 mm
- Operating Temp. Range -40 Degrees to 185 Degrees F
- Max. Current Load 100mA
- Description/Special Features Overload And Short Protection
- Standards cUL Listed
- Includes (2) Lock Nuts
Manufacturer Details
- Manufacturer: IFM
- Condensed Mfg Number: IFS242
- MPN: IFS242
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: DE
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509020
- GDS Category Name: Cylindrical Proximity Sensors and Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 41111926
- UNSPSC Class ID: 19
- UNSPSC Commodity Name: Indicating and recording instruments
- UNSPSC Commodity ID: 26
- UNSPSC Commodity Name: Proximity sensors
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:16pm UTC
Category: Switches
