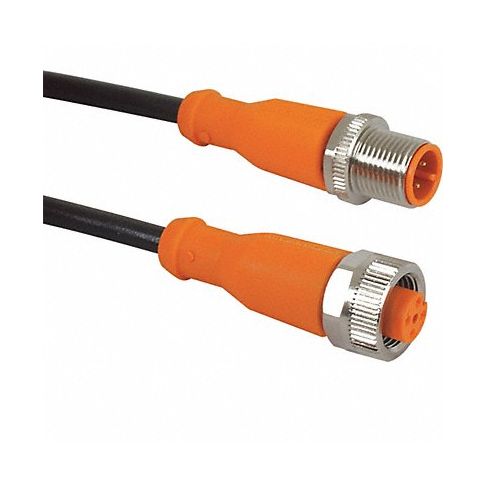

Cordset 5 Pin Receptacle Female MPN:EVC012
SKU
226-CXG-35T488
Cordset 5 Pin Receptacle Female
Introducing the high-performance Cordset 5 Pin Receptacle Female from Ifm! This versatile cable is ideal for a variety of industrial automation applications, including those in harsh environments. Its lock-in-place coupling nut ensures secure connection to quick disconnect sensors, while its mechanical end-stop insert protects the O-ring and prevents damage. The PUR-jacketed, high-flex cable is resistant to oils, coolants, and other harsh conditions, making it durable and reliable. Use this product in your factory or plant today for an easier, safer connection!
Top product features:
- Lock-in-place coupling nut ensures secure connection
- Mechanical end-stop insert protects O-ring
- High-flex, PUR-jacketed cable resists oils, coolants, and harsh conditions
Top product applications:
- Secure connection for quick disconnect sensors in harsh environments
- Prevent damage to O-rings in industrial automation systems
- Withstand oils, coolants, and other harsh conditions in factories
This patch cable is designed with a lock-in-place coupling nut that secures the cordset to a quick disconnect sensor and resists high levels of shock and vibration. It features a mechanical end-stop insert which helps to prevent damage to the O-ring. It also features a high-flex, PUR-jacketed cable designed to resist oils, coolants, and harsh conditions in industrial automation. Silicon and halogen free.
Technical Specifications
- Item Cordset
- End 1 Number of Pins 5
- End 1 Gender and Plug End Female Straight
- End 2 Gender and Plug End Male Straight
- End 1 Keyway Single
- Cable Length 1 m
- Jacket Color Black
- Number of Conductors 4
- End 1 Connection Type Receptacle
- End 2 Connection Type Plug
- End 2 Number of Pins 4
- End 2 Thread M12
- End 2 Keyway Single
- Max. Voltage 250V AC/300V DC
- Features Gold-Plated Contacts
- Max. Amps 4 A
- Wire Size 22 AWG
- Jacket Material PUR
- IP Rating 65,67,68,69K
- Temp. Range -25 Degrees to 75 Degrees C
- Standards cRUus Approval
- End 1 Thread M12
Manufacturer Details
- Manufacturer: IFM
- Condensed Mfg Number: EVC012
- MPN: EVC012
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: PL
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Sensor Cordsets
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 26121607
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Electrical cable and accessories
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Fiber optic cable
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical wire and cable and harness
- UNSPSC Segment ID: 26
- UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
