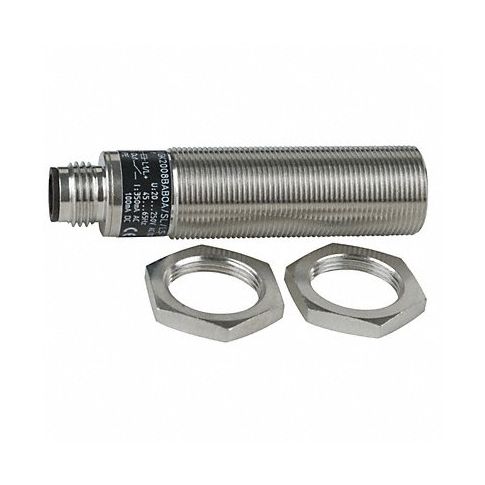

Proximity Sensor Inductive 8mm NO MPN:IG0344
The IFM Inductive Proximity Sensor is designed to meet your non-contact detection needs in industrial applications where reliability, durability, and ease of use are paramount. With an extended sensing range of up to 8mm, this proximity sensor delivers superior accuracy in detecting metal targets even from a distance. Its robust housing ensures maximum protection against mechanical damage, while its visible LED outputs make troubleshooting a breeze. Engineered for versatility, it can be used across various applications such as automotive, machinery and equipment building, robotics, and more - wherever reliable position-sensing or part-presence detection is required. Say goodbye to errors and delays in your operations - with IFM Inductive Proximity Sensor, precision and productivity are just around the corner!
Top product features:
- Extended sensing range for superior accuracy
- Robust housing design for maximum durability
- Visible LED outputs for ease of troubleshooting
Top product applications:
- Position sensing in automation systems and robots
- Part presence detection in machinery and equipment manufacturing
- Distance measuring in electronic and home appliances
Technical Specifications
- Item Cylindrical Proximity Sensor
- Proximity Sensing Method Inductive
- Proximity Sensor Diameter 18.0 mm
- Proximity Sensor Power Requirement 20 to 250V AC/DC
- Shielded / Unshielded Shielded
- Proximity Sensor Operating Frequency 25 Hz AC/60 Hz DC
- Proximity Sensor Output Circuit Type 2 Wire
- Max. Detecting Distance 8.0 mm
- Proximity Sensor Electrical Connection 3 Pin 1/2-20 UNF Male Connector
- Basic Proximity Sensor Case Material Metal
- Output Mode NO
- IP Rating 67
- Case Material Brass White Bronze Coated
- Length 72 mm
- Operating Temp. Range -13 Degrees to 158 Degrees F
- Max. Current Load 250/100mA
- Description/Special Features Red LED Output Indication
- Standards CE Compliance, cUL Listed
- Includes (2) Lock Nuts
Manufacturer Details
- Manufacturer: IFM
- Condensed Mfg Number: IG0344
- MPN: IG0344
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: DE
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Cylindrical Proximity Sensors and Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 41111926
- UNSPSC Class ID: 19
- UNSPSC Commodity Name: Indicating and recording instruments
- UNSPSC Commodity ID: 26
- UNSPSC Commodity Name: Proximity sensors
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
