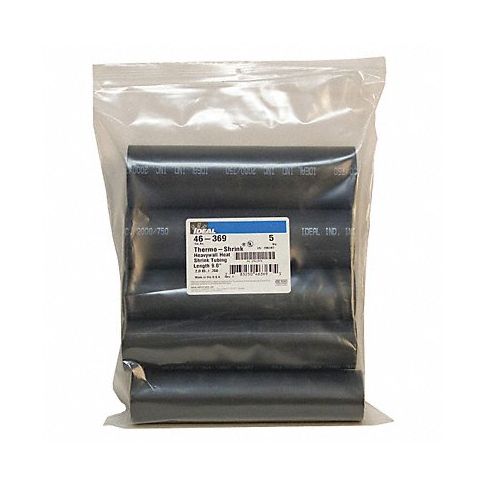

Shrink Tubing 9 in Blk 2 in ID PK5 MPN:46-369
Free Shipping
In Stock
The black shrink tubing offers versatility in electrical applications providing insulation or identification marking while sealing wire splices reducing risks of shorts, exposure to moisture or mechanical damages ensuring secure connections between components. Its 2 inches inner diameter allows for multiple bundled cables or thick wires passing through maintaining clearance while the PVC construction ensures low smoke zero halogen compliance offering peace-of-mind when used in hazardous environments minimizing toxic emissions during heat stress or emergencies. The PK5 shrink ratio delivers precision sizing on components providing uniform coverages securing cables without stretching beyond the intended dimension, suitable for installations where space constraints demand accuracy when terminating or repairing electrical connections offering reliable performance and cost-efficiency while ensuring durability.
Technical Specifications
- Item Heat Shrink Tubing
- Tubing Wall Type Heavy Wall
- Material Cross-Linked Polyolefin with Adhesive
- Tubing Flexibility Semi Rigid
- Flame Retardant Yes
- Adhesive Lined Yes
- Shrink Ratio 3:1
- Use With Wire Size 250 MCM to 500 MCM
- I.D. Before Shrinking 2 in
- I.D. After Shrinking 0.63 in
- Wall Thickness After Shrinking 0.16 in
- Length 9 in
- Shrink Tubing Properties Solvent Resistant, UV Light Resistant
- Color Black
- Temp. Range -55 Degrees to 110 Degrees F
- Package Style Individual Pieces
- Min. Shrink Temp. 248 Degrees F
- Dielectric Strength 600 V
- Max. Temp. Rating 110 Degrees F
- Min. Temp. Rating -55 Degrees F
- Features Flame Retardant
- Standards ANSI C119.1, C37.20.2, CSA C22.2 No. 198.2, ICEA S-19-8, IEEE 383 Vertical Flame Test, MIL-DTL-23053/15, UL 486D, Western Underground Guides Nos. 2.4, 2.5
Manufacturer Details
- Manufacturer: Ideal
- Condensed Mfg Number: 46369
- MPN: 46-369
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3917320050
- GDS Category Name: Shrink Tubing
- GDS Family Name: Wire Management
- GDS Segment Name: Electrical
- UNSPSC: 39121711
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Electrical hardware and supplies
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Tubings
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
