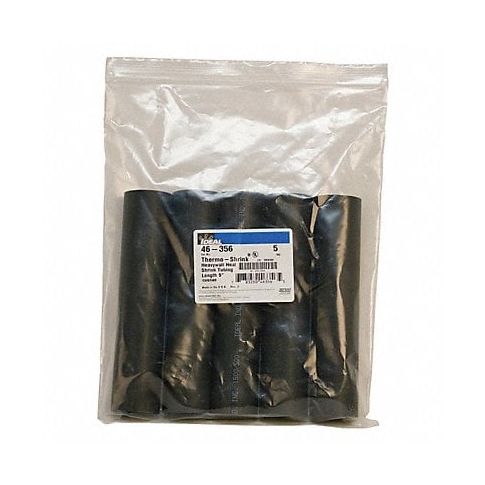

Shrink Tubing 9 in Blk 1.5 in ID PK5 MPN:46-356
SKU
226-CXG-29UJ94
Shrink Tubing 9 in Blk 1.5 in ID PK5
Ideal Shrink Tubing is an essential tool for electricians and mechanics who work in high-temperature environments. This flame retardant tubing not only protects wire and cable from heat but also prevents the spread of fires, ensuring safe operation. Its adhesive lining forms a strong seal against moisture, contaminants, and vibrations for added durability. Ideal Shrink Tubing is versatile enough to be used in various applications, such as automotive, machinery, appliances, and more! Make your workspace safer today by investing in this heat-shrink tubing from Ideal!
Top product features:
- Flame retardant material to prevent the spread of fires
- Adhesive lining for strong seals against moisture and contaminants
- Versatility in various applications including automotive, machinery, appliances, etc.
Top product applications:
- Protecting wire and cable in high temperature environments such as engine compartments
- Covering exposed wires or connections for added durability and protection against moisture and contaminants
- Providing a safe barrier between live electrical components and the user in electrical appliances
Flame retardant and adhesive-lined heat shrink tubing resists combustion and minimizes the spread of flames. It's used where hot conditions are present, such as in engine compartments. This tubing covers wire and cable and is heated to shrink the tubing and seal the adhesive.
Technical Specifications
- Item Heat Shrink Tubing
- Tubing Wall Type Heavy Wall
- Material Cross-Linked Polyolefin with Adhesive
- Tubing Flexibility Semi Rigid
- Flame Retardant Yes
- Adhesive Lined Yes
- Shrink Ratio 3:1
- Use With Wire Size 2/0 AWG to 350 MCM
- I.D. Before Shrinking 1.5 in
- I.D. After Shrinking 0.47 in
- Wall Thickness After Shrinking 0.16 in
- Length 9 in
- Shrink Tubing Properties Solvent Resistant, UV Light Resistant
- Color Black
- Temp. Range -55 Degrees to 110 Degrees F
- Package Style Individual Pieces
- Min. Shrink Temp. 248 Degrees F
- Dielectric Strength 600 V
- Max. Temp. Rating 110 Degrees F
- Min. Temp. Rating -55 Degrees F
- Features Flame Retardant
- Standards ANSI C119.1, C37.20.2, CSA C22.2 No. 198.2, ICEA S-19-8, IEEE 383 Vertical Flame Test, MIL-DTL-23053/15, UL 486D, Western Underground Guides Nos. 2.4, 2.5
Manufacturer Details
- Manufacturer: Ideal
- Condensed Mfg Number: 46356
- MPN: 46-356
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3917320050
- GDS Category Name: Shrink Tubing
- GDS Family Name: Wire Management
- GDS Segment Name: Electrical
- UNSPSC: 39121711
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Electrical hardware and supplies
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Tubings
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC
Category: Wire Management
