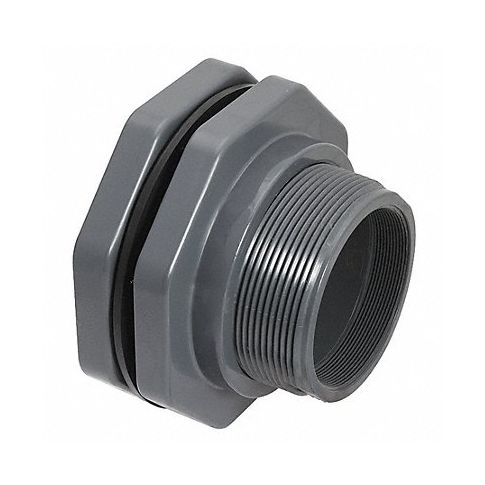

Bulkhead Fitting 1 In FNPT MPN:BFA1010TES
Free Shipping
In Stock
The bulkhead fitting is a threaded connection used to connect pipes and tubes, or other fittings to a vessel or equipment like tanks, pressure vessels, and appliances that require an access port. Also known as blind flange or plug flange, the bulkhead fitting allows easy installation of valves, instruments, or other connection components while maintaining its sealing capabilities for high-pressure or corrosive environment applications such as air conditioning systems, heating and cooling equipment, or chemical process industries. Made from materials like brass, stainless steel, or carbon steel in different types like union, slip-on, threaded, socket weld, or butt weld connections depending on specific requirements for flanges rating of 150lbs PSI and fitting size of 1 inches male National Pipe Thread (NPT) both sides. It is widely used in diverse markets including industrial automation, food processing, military, and marine industries as a permanent installment option requiring low-cost yet durable sealing integrity with ease of maintenance.
Technical Specifications
- Item Bulkhead Tank Fitting
- Body Material PVC
- Pipe Size 1 in
- Connection Type FNPT x FNPT
- Required Hole Size 1 7/8 in
- Gasket Material EPDM
- Max. Pressure 150 psi
- Max. Wall Thickness 2.08 in
- Length 3 57/64 in
- Temp. Range 40 Degrees to 140 Degrees F
- Color Gray
Manufacturer Details
- Manufacturer: Hayward
- Condensed Mfg Number: BFA1010TES
- MPN: BFA1010TES
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3917400090
- GDS Category Name: Bulkhead Tank Fittings
- GDS Family Name: Pipe Fittings and Couplings
- GDS Segment Name: Plumbing
- UNSPSC: 40141734
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Hardware and fittings
- UNSPSC Commodity ID: 34
- UNSPSC Commodity Name: Hose fitting
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on October 25, 2023 10:32am UTC Category: Pipe Fittings and Couplings
