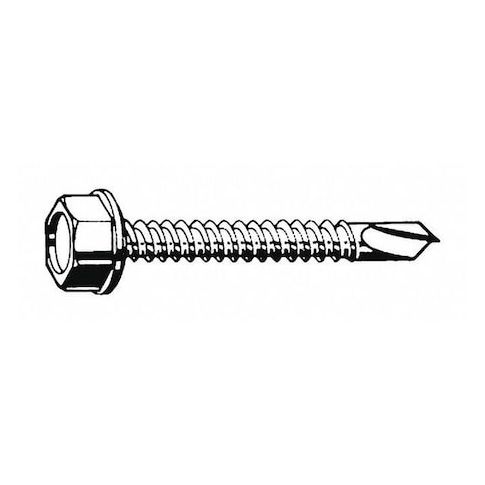

Self-Drilling Screw, #6 x 1/2 in, Zinc Plated Steel Flange Hex Head External Hex Drive, 200 PK MPN:U31810.013.0050

The ZORO SELECT - U31810.013.0050 is a self-drilling screw, intended for use in steel to steel fastening tasks. These screws are equipped with a drill point at the end, enabling direct driving into materials, potentially eliminating the need for pre-drilled holes. They are commonly used in industrial and commercial settings such as metal fabrication, construction, and assembly.

• Application: Intended primarily for use in steel-to-steel fastening scenarios.
• CAD Available: A Computer-Aided Design (CAD) file is available for accurate incorporation into digital project plans.
• Drive Size: Requires an external hex tool with a drive size of 1/4 inch for installation or removal.
• Fastener Length: The total length of this screw from its point to the underside of the head is 1/2 inch.
• Finish: Zinc-plated finish is intended to improve durability and corrosion resistance, and may aid with grip during installation.
• Head Type and Dimensions: Features a flange hex head type with dimensions ranging from 0.244 inches to 0.250 inches in diameter ensuring secure fit and proper load distribution.
• Screw Material and Size: Constructed of Steel material with a #6 screw size. The width and thread count per inch are designed as such that they may be suitable for certain industrial applications
• Standards Compliance: Manufactured according to IFI-113/ASME B18.6.4 standards which indicate adherence to certain technical specifications related to design, safety, and performance
