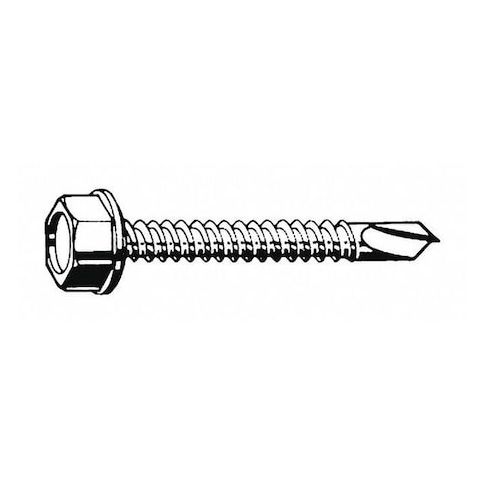

Self-Drilling Screw, 1/4" x 1-1/4 in, Zinc Plated Steel Flange Hex Head External Hex Drive, 100 PK MPN:U31810.025.0125
Free Shipping
In Stock
The ZORO SELECT self-drilling screw is a versatile and efficient fastening solution for steel-to-steel applications in industrial and commercial settings. Its unique drill point design allows for direct installation into materials without pre-drilled holes, saving time and labor. With a zinc-plated finish for improved durability and corrosion resistance, these screws are ideal for metal fabrication, construction, and assembly projects. Their external hex drive and flange hex head provide secure load distribution and easy installation. Compliant with industry standards, these screws are a reliable choice for various steel-to-steel fastening tasks, ensuring strong and lasting connections.
Top product features:
- Self-drilling capability allows the screw to be driven directly into materials without the need for pre-drilled holes.
- Zinc-plated finish improves durability and corrosion resistance.
- Fully threaded style along its entire length provides secure fastening applications.
Top product applications:
- Industrial settings
- Metal fabrication
- Construction
The ZORO SELECT - U31810.025.0125 is a self-drilling screw intended for use in steel-to-steel fastening tasks. These screws are equipped with a drill point at the end, allowing them to be driven directly into materials without the need for pre-drilled holes. They are commonly used in industrial and commercial settings such as metal fabrication, construction, and assembly.
- Application: Intended for use in steel-to-steel fastening tasks.
- CAD Available: A Computer-Aided Design (CAD) file is available for accurate incorporation into digital project plans.
- Drive & Size: Requires an external hex tool with a 3/8 inch drive size for installation or removal.
- Fastener Length: Measures 1-1/4 inches in length, determining how deeply it can penetrate and secure materials together.
- Finish: Zinc-plated finish is intended to improve durability and corrosion resistance. It may also provide certain functional properties such as potentially improving grip or reducing friction during installation.
- Head Type & Dimensions: Features a flange hex head type with dimensions ranging from 0.305 to 0.312 inches in diameter and 0.19 inches in height which are intended to aid load distribution when fully inserted.
- Material & Maximum Drilling Thickness: Made of steel that can penetrate materials up to a thickness of approximately 0.219 inches under ideal conditions, potentially eliminating the need for pre-drilled holes
- Screw Size & Thread Style: The screw size is listed at approximately1/4", featuring a fully threaded style along its entire length which is intended for secure fastening applications
- Standards Compliance: Adheres to IFI-113/ASME B18.6.4 industry standards indicating compliance with established technical specifications for design, safety, and performance.
- Tip Type: Features a drilling tip type designed for self-drilling applications.
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 12.99
- Package Width: 6.77
- Package Height: 1.00
- Package Weight: 1.64
