Self-Drilling Screw, #6 x 3/4 in, Zinc Plated Steel Flange Hex Head External Hex Drive, 200 PK MPN:U31810.013.0075
Free Shipping
In Stock

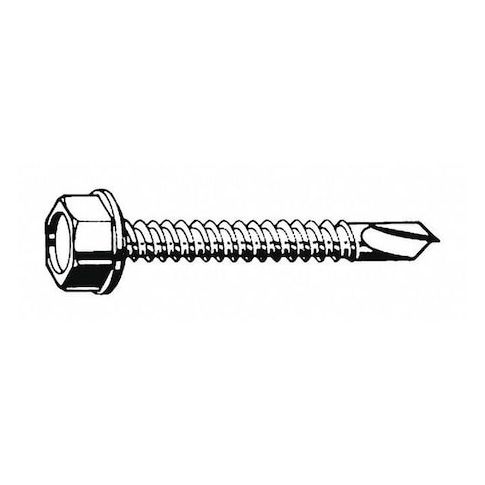

The ZORO SELECT self-drilling screw is a reliable and efficient fastening solution for industrial and commercial applications. Suitable for metal fabrication, construction, and assembly, this screw features a zinc-plated steel flange hex head with an external hex drive for easy installation and removal. Its self-drilling capability reduces labor time and effort, making it ideal for attaching materials to metal, retrofit applications, and securing roofing panels. With a maximum drilling thickness of 0.112 inches and compliance with ASME B18.6.4 and IFI-113 standards, this screw ensures secure and durable connections in various industrial and commercial settings.
Top product features:
- Self-drilling screw allows for direct attachment to materials without pre-drilled holes.
- Flange hex head provides proper load distribution for industrial or commercial applications.
- Fully threaded design with #6 size is intended for use in securing materials during industrial applications.
Top product applications:
- Attaching various materials to metal within specified gauges
- Retrofit applications
- Anchoring metal clips for masonry facades
The ZORO SELECT - U31810.013.0075 is a self-drilling screw designed for industrial and commercial applications such as metal fabrication, construction, and assembly. Made from steel with a zinc-plated finish, this fastener is equipped with a drill point at the end that allows it to be driven directly into materials without pre-drilled holes, potentially reducing labor time and effort, depending on the application.
- Application: This self-drilling screw may be used for attaching various materials to metal within specified gauges, retrofit applications, anchoring metal clips for masonry facades or securing roofing panels.
- CAD Available: A Computer-Aided Design (CAD) file is available for accurate incorporation into digital project plans.
- Drive & Size: The external hex drive requires a 1/4 inch tool fitting for installation or removal.
- Fastener Length: With an overall length of 3/4 inch, it determines how deeply the screw can penetrate and secure materials together.
- Head Type & Dimensions: The flange hex head type has dimensions ranging from 0.244 in to 0.250 in diameter and 0.093 in height ensuring proper load distribution in industrial or commercial applications.
- Maximum Drilling Thickness: It is designed to penetrate material thickness up to 0.112 inches, potentially eliminating the need for pre-drilled holes.
- Screw Size & Thread Style: The #6 size fully threaded design is intended for use in securing materials during industrial applications
- Standards Compliance: Complies with ASME B18.6.4 and IFI-113 standards as per manufacturer's claims of adherence to these technical specifications for design, safety, and performance
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 3.70
- Package Width: 3.00
- Package Height: 2.00
- Package Weight: 0.70
