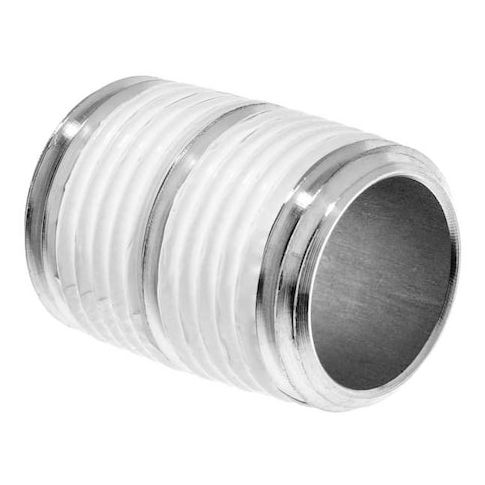

1 in Schedule 40 Stainless Steel Pipe Nipple, 304 SS, 1-1/2 in Length MPN:ZUSA-PF-1346

• The ZORO SELECT - ZUSA-PF-1346 is a stainless steel pipe nipple designed to connect two female-threaded fittings, valves, or pipes. It features male NPT close threads on both ends and is fully threaded, rated for operation up to 150 psi at 72°F and with corrosion-resistant properties per listed resistance properties. This nipple is made from 304-grade stainless steel with welded construction and an electric resistance weld seam. It is compatible with Schedule 40 pipe and intended for use with air, natural gas, non-potable water, propane, and steam within the specified operating limits (see Maximum Operating Pressure and Maximum Steam Pressure). Key Features:


  • - Nominal Pipe Size: 1 inch
  • - Inside Diameter: 1 3/64 inches
  • - Outside Diameter: 1 5/16 inches
  • - Wall Thickness: 0.154 inches
  • - Overall Length: 1 1/2 inches
  • - Maximum Operating Pressure: 150 psi @ 72°F
  • - Maximum Steam Pressure: 150 psi @ 360 Degrees F
  • - Material Grade: 304 Stainless Steel
  • - Thread Configuration: Fully Threaded on both ends
  • - Corrosion resistance inherent to 304 stainless steel
  • other listed resistance properties (abrasion, chemical, diesel, oil, and UV) are not quantified in this specification
  • - Conforms to Standards: ANSI/ASME B1.20.1, ASTM A312, ASTM A733
