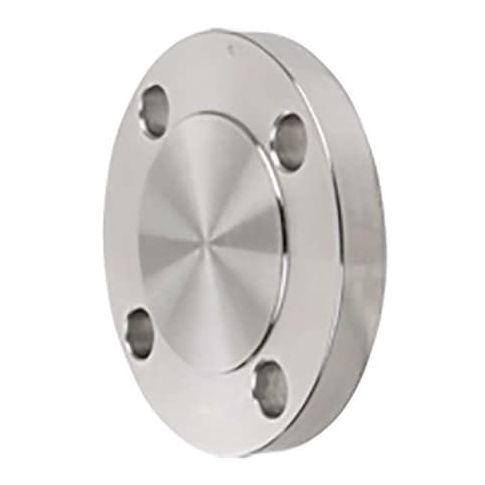

Blind Flange, 1 in Nominal Pipe Size, 316/316L Stainless Steel, Class 150, Raised Face MPN:4381001820
This stainless steel pipe flange is a versatile component used to join pipes, valves, pumps, or equipment, providing a boltable, pressure-tight connection with gaskets and bolts. Made from 316/316L stainless steel, it offers corrosion resistance and compatibility with industry-standard face and bolt pattern configurations. Suitable for various applications, including chemical processing, oil and gas, and water treatment, this flange is ideal for use in high-pressure and high-temperature environments. Its durable design ensures long-lasting performance, making it a reliable choice for demanding industrial settings.
Top product features:
- Provides a boltable, pressure-tight connection when used with gaskets and bolts.
- Offers corrosion resistance due to its 316/316L stainless steel construction.
- Conforms to industry standard face and bolt pattern configurations for compatibility with other components.
Top product applications:
- Joining pipes in industrial settings
- Connecting valves to piping systems
- Attaching pumps to piping systems
The ZORO SELECT - 4381001820 is a stainless steel pipe flange, specifically a raised face type, used to join pipes, valves, pumps, or equipment. It provides a boltable, pressure-tight connection when used with gaskets and bolts.
Made from 316/316L stainless steel, it offers corrosion resistance and conforms to industry standard face and bolt pattern configurations for compatibility with other components.
Key Features:
- - Bolt Circle Diameter: 3 1/8 in, the measurement of the circle passing through the center of bolt holes, indicating flange compatibility.
- - Diameter of the Bolt Hole: 5/8 in, the size of the holes for bolts or studs.
- - Class: Class 150, indicating the pressure rating for maximum working pressure.
- - Flange Outside Diameter: 4 1/4 in, the overall outer measurement across the flange.
- - Flange Thickness: 1/2 in, the thickness of the flange material.
- - Material Grade: 316/316L stainless steel, providing corrosion resistance and durability.
- - Nominal Pipe Size: 1 in, the standard size designation for pipe compatibility.
- - Number of Bolt Holes: 4, facilitating secure attachment to mating components.
- - Connection Surface: Raised Face, the type of sealing surface for joint integrity.
- - Standards: ASME A182, ASME B1.20.1, ASME B16.5, indicating compliance with recognized industry specifications.
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 4.30
- Package Height: 0.80
- Package Weight: 2.06
