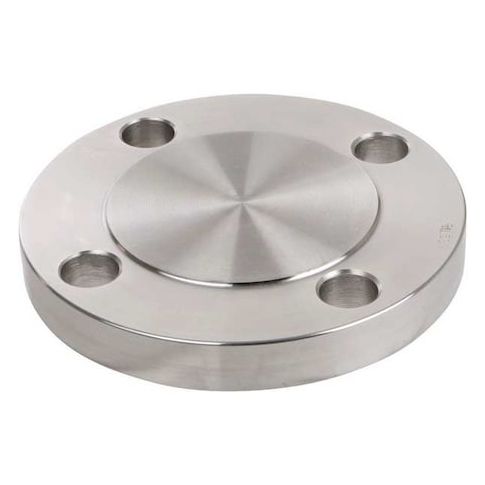

Blind Flange, 1/2 in, 304/304L Stainless Steel, Class 150, Raised Face MPN:4381000000
The ZORO SELECT 4381000000 stainless steel pipe flange is ideal for applications requiring corrosion resistance and standard dimensions. Constructed from 304/304L stainless steel, this flange features a raised face connection surface for sealing with gaskets and bolts, and is rated to Class 150 pressure standards. Suitable for use in industries such as chemical processing, oil and gas, and food and beverage, this blind flange is designed to seal off piping ends. Its corrosion-resistant properties ensure a long-lasting and reliable connection, making it a valuable addition to any piping system.
Top product features:
- Constructed from 304/304L stainless steel, it is suitable for applications requiring corrosion resistance.
- Features a raised face connection surface for sealing with gaskets and bolts.
- Rated to Class 150 pressure standards, ensuring compatibility with standard piping systems.
Top product applications:
- Chemical Processing: The stainless steel construction and corrosion-resistant properties of the Blind Flange make it suitable for applications in chemical processing facilities where exposure to corrosive substances is a concern.
- Oil and Gas Industry: The Blind Flange's ability to seal off piping ends and its compatibility with Class 150 pressure standards make it a suitable choice for applications in the oil and gas industry where high pressure and corrosion resistance are required.
- Pulp and Paper Industry: The Blind Flange's corrosion-resistant properties and compatibility with ASME A182 and ASME B16.5 standards make it a suitable choice for applications in the pulp and paper industry where exposure to corrosive substances and high pressure is common.
The ZORO SELECT - 4381000000 is a stainless steel pipe flange. Constructed from 304/304L stainless steel, it is suitable for applications requiring corrosion resistance. This flange features a raised face connection surface for sealing with gaskets and bolts. It is rated to Class 150 pressure standards and manufactured according to ASME A182 and ASME B16.5 specifications, ensuring standard dimensions and compatibility.
Key Features:
- - Nominal Pipe Size: 1/2 in.
- - Number of Bolt Holes: 4, with a bolt hole diameter of 5/8 in.
- - Bolt Circle Diameter: 2 3/8 in, specifying the center-to-center measurement across opposing bolt holes.
- - Flange Outside Diameter: 3 1/2 in.
- - Flange Thickness: 7/16 in.
- - Specific Fitting Shape: Blind Flange, designed to seal off piping ends.
- - Material: 304/304L Stainless Steel, suitable for applications requiring corrosion resistance.
- - Connection Surface: Raised Face.
- - Rated for use within the pressure specifications of Class 150 standards.
- - Conforms to ASME A182 and ASME B16.5 standards for material and dimensions.
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 3.50
- Package Height: 0.60
- Package Weight: 1.10
