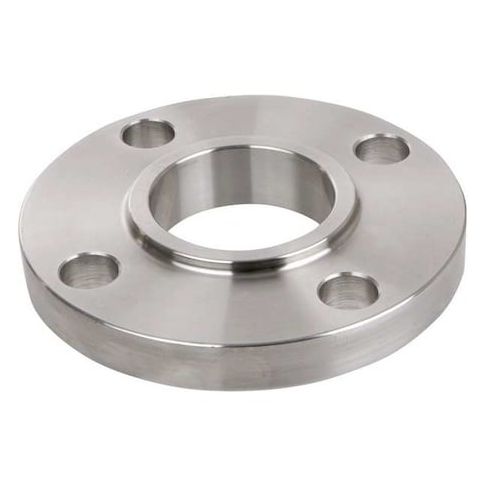

Flange, Stainless Steel, 11 in MPN:4381000300
This stainless steel pipe flange is designed for joining pipes, valves, pumps, or equipment, providing a boltable surface for secure attachment. Made from 304/304L stainless steel, it offers corrosion resistance and pressure-tight joints when assembled with gaskets and bolts. Conforming to ASME A182 and ASME B16.5 standards, it's suitable for a wide range of applications, including industrial piping systems, oil and gas refineries, and chemical processing plants. Its durability and resistance to corrosion make it an ideal choice for high-pressure and high-temperature environments, ensuring reliable and long-lasting performance.
Top product features:
- Pipe fitting material: 304/304L stainless steel for durability and corrosion resistance.
- Connection surface: Lap joint, designed for pressure-tight joints when assembled with gaskets and bolts.
- Bolt circle diameter: 9 1/2 in, allowing for secure attachment and compatibility with bolts.
Top product applications:
- Pipe fittings for industrial piping systems
- Valve and pump connections in chemical processing plants
- Equipment mounting in power generation and transmission facilities
The ZORO SELECT - 4381000300 is a stainless steel pipe flange designed to provide a boltable surface for joining pipes, valves, pumps, or equipment. It is made from 304/304L stainless steel, designed to provide corrosion resistance and pressure-tight joints when assembled with gaskets and bolts. This pipe flange features a lap joint connection surface and conforms to ASME A182 and ASME B16.5 standards. It has a nominal pipe size of 6 inches and a Class 150 pressure rating, rated for use within pressure ranges conforming to Class 150 specifications.
Key Features:
- - Pipe fitting material: 304/304L stainless steel for durability and corrosion resistance.
- - Connection surface: Lap joint.
- - Nominal pipe size: 6 in.
- - Pressure class rating: Class 150.
- - Number of bolt holes: 8, allowing secure attachment.
- - Bolt hole diameter: 7/8 in for bolt compatibility.
- - Bolt circle diameter: 9 1/2 in measuring center-to-center across bolt holes.
- - Flange outside diameter: 11 in.
- - Flange thickness: 1 in.
- - Conforms to ASME A182 and ASME B16.5 standards for material and dimensional requirements.
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 11.00
- Package Height: 1.56
- Package Weight: 17.86
