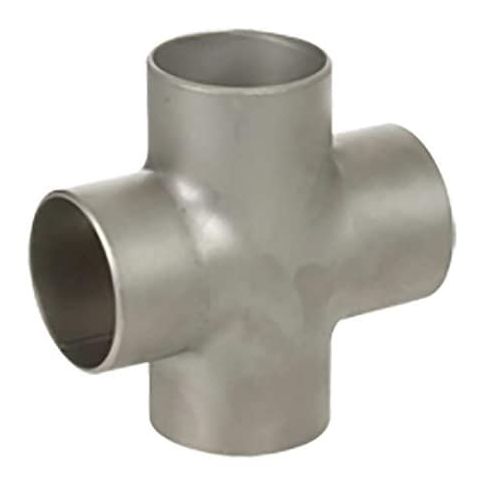

Cross, SS, BW 4", BW 4", BW 4", BW 4" MPN:4381015630
The ZORO SELECT - 4381015630 is a versatile stainless steel cross fitting designed for flow distribution among four pipe connections. Constructed from durable 316 stainless steel, this fitting is ideal for use in applications involving high pressure and temperature systems. Its four 90° openings allow for efficient flow distribution, making it suitable for use in industrial processes, chemical plants, and other high-pressure systems. With a maximum operating pressure of 275 psi at 150°F, this fitting meets the demands of demanding applications while ensuring reliable and long-lasting performance.
Top product features:
- Material: 316 stainless steel
- Shape: Cross with four 90° openings
- Nominal pipe size: 4 in on all four sides
Top product applications:
- Flow distribution among four pipe connections
- Applications involving high-temperature and high-pressure systems
- Systems requiring a compact, four-way connection for pipes of schedule 10 wall thickness
The ZORO SELECT - 4381015630 is a stainless steel pipe fitting in the shape of a cross, featuring four connections arranged at 90° in one plane. It is constructed from 316 stainless steel and rated for use in applications involving flow distribution among four pipe connections. Each of the four ends has a nominal pipe size of 4 inches and utilizes butt weld connections. This fitting is suitable for use with pipes of schedule 10 wall thickness and is rated for use in systems with maximum operating pressure of 275 psi at 150°F. Its overall length measures 4 inches and it complies with ASTM A403, ASTM A960, ASTM B16.9, and MSS SP-43 standards.
Key Features:
- - Material: 316 stainless steel
- - Shape: Cross with four 90° openings
- - Nominal pipe size: 4 in on all four sides
- - Connection type: Butt weld on all four sides
- - Pipe schedule compatibility: 10
- - Maximum operating pressure: 275 psi @ 150°F
- - Overall length: 4 in
- - Compliance with ASTM A403, ASTM A960, ASTM B16.9, MSS SP-43 standards
- - Color: Silver
- - omit from description
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.24
- Package Width: 4.50
- Package Height: 8.24
- Package Weight: 10.00
