Weld Neck Flange Pipe Flange, 2" Pipe, Flanged x Weld Neck, Steel, Class 1500 MPN:BULK-PF-568
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G900424767

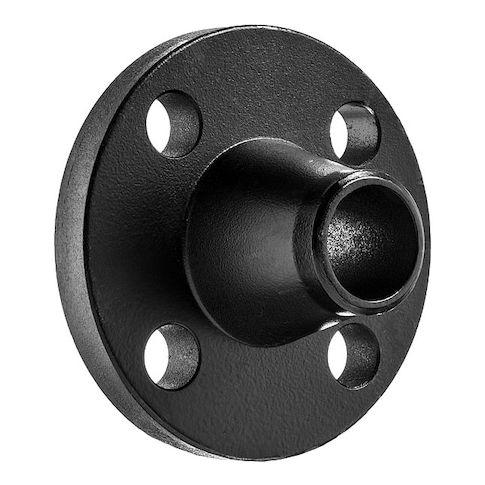

Weld Neck Flange Pipe Flange, 2" Pipe, Flanged x Weld Neck, Steel, Class 1500
Elevate your industrial piping systems with the Weld Neck Flange Pipe Flange from GoVets Select. Designed for use on 2-inch pipe, this flange features a raised face and weld neck connection, ensuring a secure and leak-free seal. Built from durable steel with a black coating, it meets Class 1500 standards and is suitable for pipe schedule XXH. With a maximum operating pressure of 3,600 psi and a temperature range of 80-780°F, this flange is ideal for applications involving steam, water, or other high-pressure fluids. Its compact design and easy installation make it a reliable choice for various industries, including power generation and manufacturing.
Top product features:
- Raised flange design allows for easy installation and removal of the flange
- Weld neck design provides a strong and leak-free connection to the pipe
- Bolt holes are spaced to accommodate 8 bolts, providing a secure and reliable connection
Top product applications:
- High-pressure steam power generation systems
- Industrial chemical processing plants
- High-temperature oil refineries
Flange, Raised, 2 in Nominal Pipe Size, Flanged x Weld Neck, 8 1/2 in Flange Outside Diameter, 1 1/2 in Flange Thickness, 8 1/2 in Overall Length, Steel, Black Coated, A105, Class Class 1500, For Pipe Schedule Schedule XXH, 3,600 psi @ 72 Degrees F Maximum Operating Pressure, 3,600 psi Max. Steam Pressure, 80 Degrees to 780 Degrees F, Number of Bolt Holes 8, 6 1/2 in Bolt Circle Diameter, 7/8 in Bolt Hole Diameter
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.23
- Package Width: 2.17
- Package Height: 3.23
- Package Weight: 1.21
Product info last updated on February 27, 2026 8:22am UTC
Category: Pipes, Valves and Fittings
