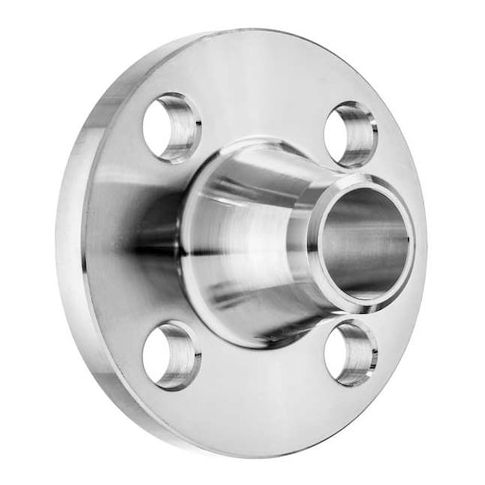

2 in 316 Stainless Steel Weld Neck Flange, Class 1500, Raised Face, Schedule XXH MPN:BULK-PF-782

The ZORO SELECT - BULK-PF-782 is a stainless steel pipe flange rated for use with air, natural gas, oil, and potable water systems. It features a raised face for sealing, a Class 1500 pressure rating, and a Material Grade of 316 stainless steel, rated with corrosion resistance suitable for specified environments. With an 8 1/2-inch outside diameter flange, a 2-inch nominal pipe size, and eight bolt holes of 7/8 inch diameter, this flange is compatible with bolted connections using gaskets. Its flange connection type is flanged x weld neck, designed for bolted and welded connection types as industry standards specify.

Key Features:

• - Application: Suitable for air, natural gas, oil, and potable water systems.
• - Bolt Hole Diameter: 7/8 in, compatible with standard bolts for flange attachment.
• - Class: Rated as Class 1500 for high-pressure capacity.
• - Connection Surface: Raised face, compatible with gaskets for sealing purposes.
• - Fitting Connection Type: Flanged x weld neck, designed for bolted and welded connection types as industry standards specify.
• - Flange Outside Diameter: 8 1/2 in, specified as 8 1/2 in.
• - Pipe Schedule: XXH, rated for Pipe Schedule XXH according to industry standards.
• - Nominal Pipe Size: 2 in, rated for nominal pipe size 2 in within industry specifications.
• - Number of Bolt Holes: 8, has 8 bolt holes for attachment as per design specifications.
• - Material Grade: 316 stainless steel, constructed from corrosion-resistant material.
• - Standards: ASME B16.5, ASTM A182, MSS SP-25, MSS SP-6, conforms to the standards specified.
• - Low Lead Compliance Level: Compliant, in compliance with Low Lead requirements for potable water systems.
