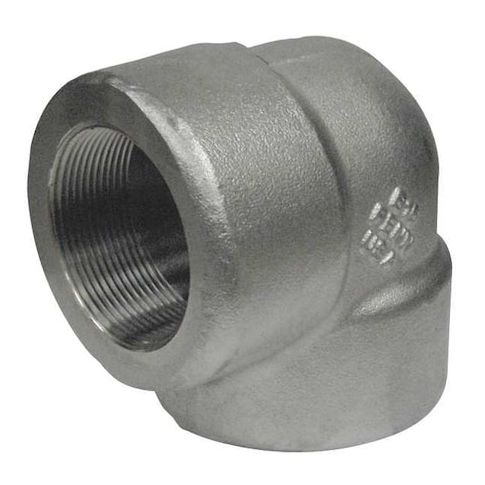

90° Elbow, 1-1/2 in FNPT, 316/316L Stainless Steel, Class 3000, Electro Polished MPN:3000300118
The ZORO SELECT 3000300118 is a high-performance 90-degree elbow fitting designed for use in piping, HVAC, process, and industrial systems. Constructed from durable 316/316L stainless steel, this fitting offers a Class 3000 pressure rating, making it suitable for natural gas, non-potable water, and oil systems. The electro-polished finish ensures a smooth surface and reduced risk of corrosion. With a maximum pressure of 3000 psi at 100°F, this fitting is ideal for applications requiring high-pressure connections. Its compact design and female threaded connections make it easy to integrate into existing systems, providing a reliable and efficient solution for demanding industrial applications.
Top product features:
- Connects two pipes at a right angle (90°)
- Features a smooth surface finish due to electro polishing
- Rated for natural gas, non-potable water, and oil systems within its Class 3000 pressure rating
Top product applications:
- Natural Gas
- Non-Potable Water
- Oil
The ZORO SELECT 3000300118 is a stainless steel 90 Degree Elbow fitting designed to connect two pipes at a right angle (90°). It features a pressure rating of Class 3000 and is rated for natural gas, non-potable water, and oil systems within its Class 3000 pressure rating. The fitting is electro polished for a smooth surface finish, with female threaded connections of type FNPT. It is made from 316/316L stainless steel with Class 3000 pressure rating
- suitable for piping, HVAC, process, and industrial systems per applicable standards (ASTM A182/ASME SA182
- ASME B16.11
- ANSI B1.20.1).
Key Features:
- - Material: Metal (316/316L stainless steel)
- - Shape: 90 Degree Elbow
- - Pressure Class: Class 3000
- - Finish/Coating: Electro Polished
- - Connection Type: FNPT
- - Fitting Sub-Category: Elbows
- - Includes Pre-Applied Thread Sealant: No
- - Includes Seal: No
- - Application: Natural Gas, Non-Potable Water, Oil
- - Max. Pressure: 3000 psi @ 100°F
- - Pipe Fitting Material: 316/316L Stainless Steel
- - Pipe Size: 1 1/2 in
- - Standards: ASTM A182/ASME SA182
- ASME B16.11
- ANSI B1.20.1
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 3.10
- Package Weight: 5.80
