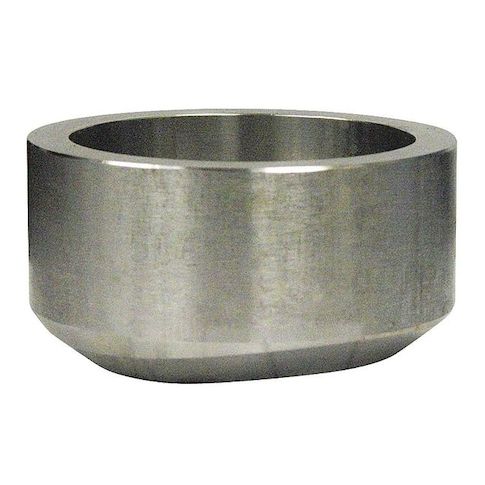

Socket Weld Outlet, 1 in, 316/316L Stainless Steel, Class 3000, Female x Female MPN:200791350218

• The ZORO SELECT - 200791350218 is a stainless steel socket weld outlet designed as a branch fitting with recessed sockets on both ends to accept 1-inch nominal pipe sizes. Constructed from 316/316L stainless steel. Material: 316/316L stainless steel. Maximum operating pressure: 3,000 psi at 100°F. Socket weld connection secured by fillet welds at socket shoulders

• no threading required. The outlet is part of the sockolet sub-category in stainless steel pipe fittings and has a silver finish.

  Key Features:


  • - Material: 316/316L stainless steel with metal construction
  • - Connection type: Socket weld (FSW) with female gender on both sides
  • - Nominal pipe size: 1 inch with 1 3/4 inch outside diameter at Side A
  • - Pressure rating: Class 3000
  • Maximum operating pressure of 3,000 psi @ 100°F
  • - Overall length: 1 5/16 inches
  • - Conforms to ASTM A182/ASME SA182 MSS SP-97, ASME B31.1, ASME B16.11, and ASME B16.9 standards
  • - Color: Silver
  • - Includes no pre-applied thread sealant or additional seals
