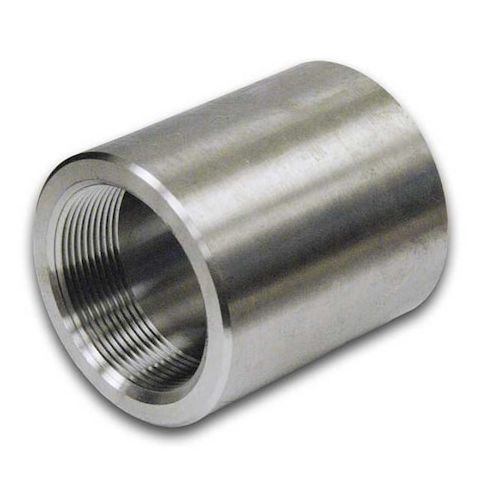

1-1/2 in FNPT 316/316L Stainless Steel Coupling, Class 3000, 3, 000 psi Max Pressure MPN:3000300718

• The ZORO SELECT - 3000300718 is a stainless steel coupling designed to join two 1-1/2 inch nominal pipes or tubes in a straight line, creating a continuous flow path. Made from 316/316L stainless steel

• compatibility with natural gas, non-potable water, and oil systems should be verified per applicable codes and service conditions. NPT female connections on both ends for 1-1/2 inch nominal pipe size. The fitting is pressure rated to Class 3000 standards, supporting a maximum operating pressure of 3,000 psi at 100 degrees Fahrenheit. It conforms to ASTM A182/ASME SA182, ASME B16.11, and ANSI B1.20.1 standards. Key Features:

  • - Material: 316/316L stainless steel.
  • - NPT female connections on both ends for 1-1/2 inch nominal pipe size.
  • - Pressure rating: Class 3000, max operating pressure 3,000 psi @ 100°F.
  • - Overall length: 3 1/8 inches.
  • - Color: Silver.
  • - Standards compliance: ASTM A182/ASME SA182, ASME B16.11, ANSI B1.20.1.
  • - Does not include pre-applied thread sealant or seals.
