1 in FNPT 304/304L Stainless Steel Coupling, Class 3000, 2-3/8 in Length MPN:2000300712

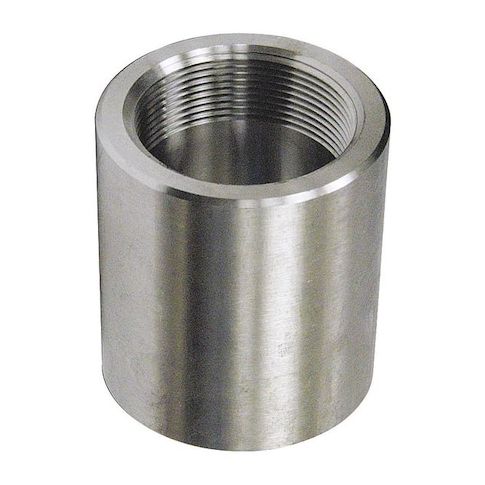

This 1-inch FNPT 304/304L stainless steel coupling is designed for joining pipes or tubes in a straight line, creating a continuous flow path. Constructed from corrosion-resistant 304/304L stainless steel, it offers strength and durability in systems involving natural gas, non-potable water, and oil. Suitable for use in applications where high pressure and temperature are present, this coupling is rated for 2,570 psi at 100°F. With its female NPT connections and conforming to industry standards, it provides a reliable and long-lasting solution for a variety of applications, including industrial and commercial settings.
Top product features:
- Material: 304/304L stainless steel providing corrosion resistance and durability.
- Connection type: Female National Pipe Thread (FNPT) on both ends, 1 inch nominal pipe size.
- Pressure rating: conforms to industry standards for maximum operating pressure of 2,570 psi @ 100°F.
Top product applications:
- Natural gas systems
- Non-potable water systems
- Oil systems
The ZORO SELECT - 2000300712 is a stainless steel coupling used to join two pipes or tubes in a straight line, creating a continuous flow path. Constructed from 304/304L stainless steel, this fitting offers corrosion resistance and strength. It features female NPT connections on both ends with a nominal pipe size of 1 inch, suitable for use in systems involving natural gas, non-potable water, and oil when used in accordance with applicable standards and installation guidelines. Rated for operation within a maximum pressure of 2,570 psi at temperatures up to 100°F, it conforms to standards such as ASTM A182/ASME SA182, ASME B16.11, and ANSI B1.20.1.
Key Features:
- - Material: 304/304L stainless steel providing corrosion resistance and durability.
- - Connection type: Female National Pipe Thread (FNPT) on both ends, 1 inch nominal pipe size.
- - Pressure rating: conforms to industry standards for maximum operating pressure of 2,570 psi @ 100°F.
- - Application compatibility: Suitable for use in systems involving natural gas, non-potable water, and oil when used in accordance with applicable standards and installation guidelines.
- - Dimensions: Outside diameter of 1 3/4 inches on both sides
- overall length of 2 3/8 inches.
- - Standards: Conforms to ASTM A182/ASME SA182, ASME B16.11, and ANSI B1.20.1.
- - Thread specifications: 11 1/2 threads per inch, NPT threading on both ends.
- - Does not include pre-applied thread sealant or additional seals.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 1.70
- Package Height: 2.30
- Package Weight: 0.85
