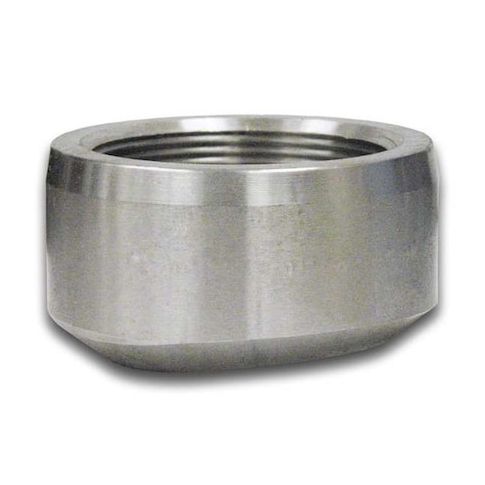

1/2 in FNPT 304/304L Stainless Steel Threaded Outlet, Class 3000 MPN:100740350212

• The ZORO SELECT - 100740350212 is a 304/304L stainless steel threaded outlet pipe fitting used to create a branch connection for attaching pipes, valves, gauges, instruments, or plugs without welding. It features female National Pipe Thread (NPT) connections on both ends with a nominal pipe size of 1/2 inch. Applications: Natural gas, non-potable water, and oil systems. Rated for a maximum pressure of 3,000 psi

• maximum allowable working pressure (MAWP) of 2,570 psi at 100 °F, conforming to industry standards such as ASTM A182, ASME B16.11, and ASME B31.1. Key Features:

  • - Material: 304/304L stainless steel.
  • - Pressure Class: Class 3000, indicating maximum pressure rating.
  • - Connection Type: Female NPT threaded ends on both ends for standard NPT female threaded connections on both ends.
  • - Nominal Pipe Size: 1/2 inch for both fitting ends.
  • - Outside Diameter (Side A): 1 1/4 inches.
  • - Overall Length: 1 1/16 inches.
  • - Applications: Natural gas, non-potable water, and oil systems.
  • - Includes no pre-applied thread sealant or sealing components.
