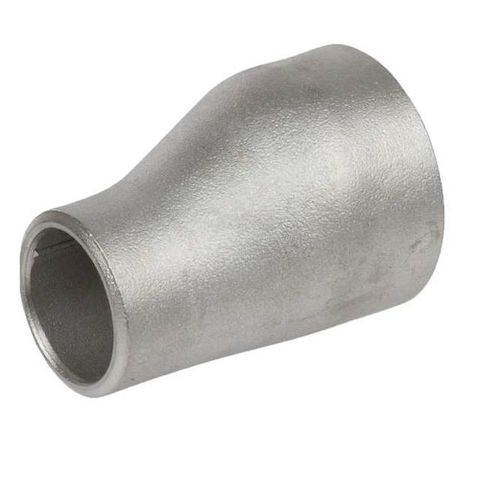

StainlessSteel, EccentricReducer, 5"x21/2" MPN:4381010320
The ZORO SELECT - 4381010320 is a stainless steel eccentric reducer fitting designed to connect pipes of different diameters while maintaining a flat side orientation, ideal for horizontal piping applications. This product prevents issues such as air pockets, sediment buildup, cavitation, and flow restriction, ensuring optimal system performance. Its 304 stainless steel construction provides corrosion resistance and durability, meeting industry standards for maximum operating pressure of 275 psi at 150°F. Suitable for use in a variety of industries, including chemical processing, oil and gas, and food processing, this reducer fitting ensures reliable and efficient piping connections.
Top product features:
- Maintains a flat side orientation to prevent issues such as air pockets, sediment buildup, cavitation, or flow restriction.
- Provides corrosion resistance and durability due to its stainless steel construction.
- Supports horizontal piping with a butt weld connection on both sides, allowing for secure and leak-free connections.
Top product applications:
- Connecting pipes of different diameters in horizontal piping systems to prevent air pockets, sediment buildup, cavitation, or flow restriction.
- Using the ZORO SELECT 4381010320 in applications where a stainless steel eccentric reducer fitting is required for its corrosion resistance and durability.
- In systems where a butt weld connection is necessary for connecting pipes of 5 and 2 1/2 inch nominal pipe sizes.
The ZORO SELECT - 4381010320 is a stainless steel eccentric reducer fitting designed to connect pipes of different diameters while maintaining a flat side orientation. Its application supports horizontal piping to prevent issues such as air pockets, sediment buildup, cavitation, or flow restriction.
Key Features:
- - Color: Silver, providing corrosion resistance and durability.
- - Fitting Side A: 5 in nominal pipe size, 6 in outside diameter, butt weld connection.
- - Fitting Side B: 2 1/2 in nominal pipe size, butt weld connection.
- - Material Grade: 304 Stainless Steel, aligned with industry standards for corrosion resistance.
- - Maximum operating pressure: 275 psi @ 150°F.
- - Standards: ASTM A403, ASTM A960, ASTM B16.9, MSS SP-43, ensuring compliance with recognized industry specifications.
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 6.63
- Package Height: 6.63
- Package Weight: 1.00
