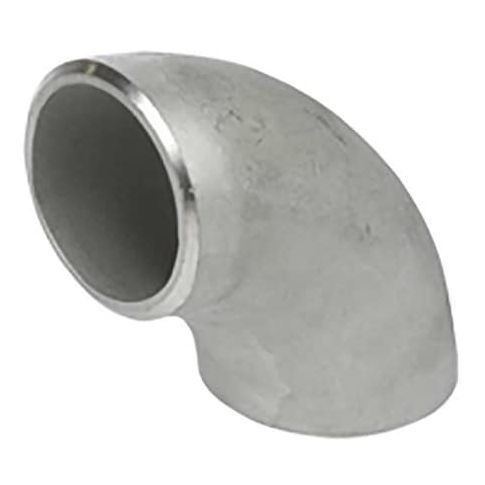

StainlessSteel, 90LongRadiusElbow, 4"x4" MPN:4381014280
The ZORO SELECT 90-degree long radius elbow pipe fitting is a durable and reliable solution for changing the direction of flow in piping systems. Made from 316 stainless steel, this elbow provides corrosion resistance and high strength, ensuring optimal performance in demanding environments. With a maximum operating pressure of 275 psi at 150°F, it meets or exceeds industry standards for safety and reliability. Suitable for use in a wide range of applications, including chemical processing, oil and gas, and food and beverage, this elbow is an essential component for maintaining efficient and safe fluid flow systems.
Top product features:
- 316 stainless steel construction provides corrosion resistance and high strength
- Changes the direction of flow in a piping system
- Complies with standards including ASTM A403, ASTM A960, ASTM B16.9, and MSS SP-43
Top product applications:
- Industrial Process Piping
- Chemical Plant Piping
- Oil and Gas Refinery Piping
The ZORO SELECT - 4381014280 is a 90-degree long radius elbow pipe fitting made of 316 stainless steel. It is designed to change the direction of flow in a piping system and connects to pipes with a nominal size of 4 inches on both ends. Both connection ends are prepared for butt weld installation. 316 stainless steel construction provides corrosion resistance and high strength
- maximum operating pressure is 275 psi at 150°F. It complies with standards including ASTM A403, ASTM A960, ASTM B16.9, and MSS SP-43. Key Features:
- - Material: 316 stainless steel
- - Shape: 90 Degrees Long Radius Elbow
- - Connection type: Butt Weld on both Side A and Side B
- - Nominal pipe size: 4 in for both sides
- - Outside diameter: 4 in measured at Side A
- - Pipe schedule compatibility: Schedule 10
- - Maximum operating pressure: 275 psi at 150 Degrees F
- - Color: Silver
- - Does not include pre-applied thread sealant or sealing components
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.90
- Package Width: 4.50
- Package Height: 4.50
- Package Weight: 4.58
