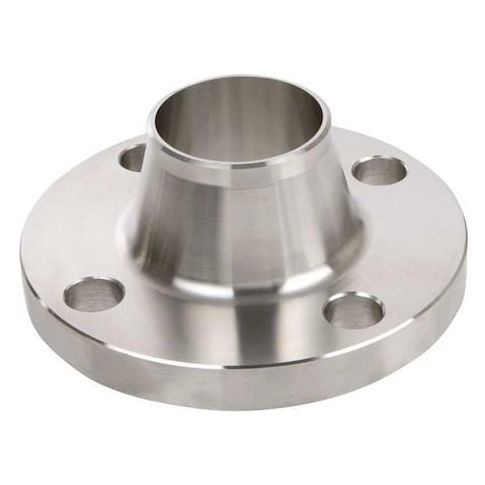

3 in Schedule 40 Weld Neck Flange, Raised Face, 304/304L Stainless Steel MPN:4381001470
This stainless steel weld neck flange is a critical component for joining piping systems, valves, pumps, or equipment in various industries. Its raised face connection surface ensures secure gasket sealing, while its 304/304L stainless steel construction provides excellent corrosion resistance, meeting industry standards. With a bolt circle diameter of 6 inches and four bolt holes, this flange is suitable for a range of applications, including chemical processing, oil and gas, and food and beverage production. Its compatibility with industry specifications and standards makes it a reliable choice for a variety of piping systems and equipment.
Top product features:
- Connection Surface: Raised Face – features a connection surface suitable for gasket sealing
- Bolt Circle Diameter: 6 in – indicates the spacing of bolt holes in a circular pattern
- Material Grade: 304/304L Stainless Steel – materials meet industry standards for corrosion resistance
Top product applications:
- Joining piping systems
- Connecting valves
- Connecting pumps or equipment
The ZORO SELECT - 4381001470 is a stainless steel pipe flange that joins piping systems, valves, pumps, or equipment. It features a raised face connection surface suitable for gasket sealing and a bolt circle diameter of 6 inches, with four bolt holes measuring 3/4 inches in diameter. The flange has an approximate outer diameter of 7 1/2 inches and is constructed from 304/304L stainless steel, which materials meet industry standards for corrosion resistance. Its flange thickness is 15/16 inches, and it conforms to standards ASME A182 and ASME B16.5 for compatibility with industry specifications.
Key Features:
- - Connection Surface: Raised Face – features a connection surface suitable for gasket sealing
- - Bolt Hole Diameter: 3/4 in – specifies the bolt hole diameter
- - Bolt Circle Diameter: 6 in – indicates the spacing of bolt holes in a circular pattern
- - Flange Outside Diameter: 7 1/2 in – specifies the approximate outer diameter of the flange
- - Flange Thickness: 15/16 in – specifies flange thickness
- - Material Grade: 304/304L Stainless Steel – materials meet industry standards for corrosion resistance
- - Nominal Pipe Size: 3 in – standard size designation for pipe compatibility
- - Number of Bolt Holes: 4 – specifies the total bolt holes in the flange
- - Standards: ASME A182, ASME B16.5 – indicates conformance with industry specifications
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.20
- Package Width: 8.40
- Package Height: 6.70
- Package Weight: 12.20
