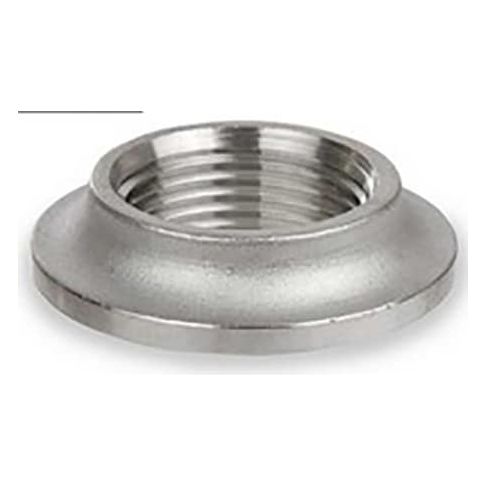

Weld Spud, 316 Stainless Steel, 1/4 in FNPT, Class 150 MPN:4381047600
The ZORO SELECT weld spud is a versatile and reliable connection solution for joining welded piping runs to threaded components. Constructed from 316-grade stainless steel, this fitting provides a permanent welded connection on one side and a 1/4 inch female NPT threaded connection on the other, allowing for easy attachment and removal of valves, gauges, and other equipment. Suitable for use in a variety of applications, including industrial, commercial, and residential settings, this weld spud offers a durable and long-lasting connection solution. Its high-pressure rating and corrosion-resistant material make it an ideal choice for harsh environments and demanding applications.
Top product features:
- A weld-prepared end suitable for butt or socket welding, providing a permanent welded connection on one side.
- A 1/4 inch female NPT threaded connection on the other side for removable attachment.
- Constructed from 316-grade stainless steel, suitable for use within specified pressure and temperature ranges.
Top product applications:
- Welding piping runs to threaded components such as valves or gauges
- Joining Schedule 40 pipe to threaded components
- Creating a permanent welded connection on one side and a removable attachment on the other side
The ZORO SELECT - 4381047600 is a stainless steel weld spud designed for joining welded piping runs to threaded components such as valves or gauges. It features a weld-prepared end suitable for butt or socket welding, providing a permanent welded connection on one side and a 1/4 inch female NPT threaded connection on the other side for removable attachment. Constructed from 316-grade stainless steel, this fitting is rated for use within specified pressure and temperature ranges based on material specifications and is compatible with Schedule 40 pipe.
Key Features:
- - Material: 316 stainless steel
- - Connection Type Side A: 1/4 in female NPT
- - Connection Type Side B: 1/4 in female NPT
- - Maximum Operating Pressure: 300 psi @ 150°F
- - Pipe Schedule Compatibility: 40
- - Standards: ANSI B1.20.1
- ASTM A351
- - Color: Silver
- - Includes no pre-applied thread sealant or sealing components
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
