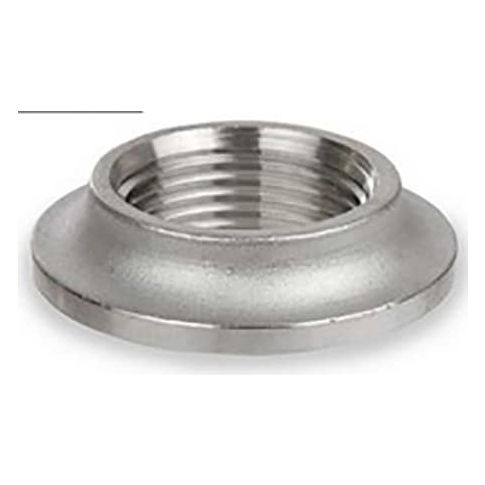

Weld Spud, 316 Stainless Steel, 1-1/4 in FNPT x FNPT, Class 150 MPN:4381047650
Upgrade your piping system with the ZORO SELECT 4381047650 Weld Spud, a reliable and durable fitting designed for use in high-pressure applications. Made from 316 stainless steel, this fitting provides exceptional corrosion resistance and is suitable for use in a wide range of industries, including oil and gas, chemical processing, and power generation. Its weld-prepared end and male pipe threads enable seamless connections to threaded components, ensuring a secure and leak-free seal. Ideal for use in applications where high pressure and temperature are present, this fitting is a trusted solution for engineers and technicians seeking a reliable and long-lasting connection.
Top product features:
- 316 Stainless Steel material for corrosion resistance.
- Weld-prepared end for welded connections.
- Removable threaded outlet for flexibility.
Top product applications:
- Industrial Process Piping
- Chemical Processing Plants
- Oil and Gas Refineries
The ZORO SELECT - 4381047650 is a stainless steel weld spud fitting designed with a weld-prepared end and a male pipe thread to connect welded piping runs to threaded components. It is made from 316 stainless steel and intended for use with 1 1/4-inch nominal pipe size on both connection ends. Maximum operating pressure: 300 psi at 150°F, and it conforms to ANSI B1.20.1 and ASTM A351 standards, and provides a weld-prepared end for welded connections and a removable threaded outlet.
Key Features:
- - Material: 316 Stainless Steel for corrosion resistance.
- - Nominal Pipe Size: 1 1/4 in on both sides for compatibility with corresponding pipes.
- - Connection Type: NPT threads on both Side A and Side B.
- - Maximum Operating Pressure: 300 psi at 150°F.
- - Pressure Class: 150.
- - Color: Silver.
- - Pipe Schedule: 40, indicating standard wall thickness compatibility.
- - Standards: ANSI B1.20.1, ASTM A351.
- - Does not include pre-applied thread sealant or sealing components.
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 9 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
