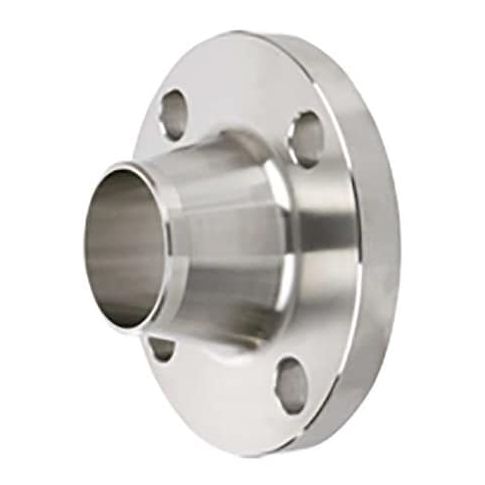

3 in Schedule 10 Weld Neck Flange, 316/316L Stainless Steel, Class 150, Raised Face MPN:4381002840
Elevate your piping system with the ZORO SELECT - 4381002840, a high-quality Schedule 10 Weld Neck Flange designed for use in various industrial applications. Manufactured from 316/316L stainless steel, this flange offers excellent corrosion resistance and durability. Its raised face connection surface ensures a secure seal when paired with gaskets and bolts. Suitable for use in systems operating at Class 150 pressure ratings, this flange is ideal for applications such as chemical processing, oil and gas, and pharmaceutical manufacturing. With its robust construction and precise dimensions, the ZORO SELECT - 4381002840 provides reliable performance and long-lasting service in demanding environments.
Top product features:
- The flange is designed for use with gaskets and bolts to achieve a seal when installed properly.
- The flange is manufactured from 316/316L stainless steel, making it suitable for use in systems operating within Class 150 pressure ratings.
- The flange has a raised face connection surface, allowing for a secure and reliable connection to other pipe components.
Top product applications:
- Pipe connection component in specified piping systems
- Gasket and bolt seal in 3 inch nominal pipe size
- ASME standard compliant pipe flange for Class 150 pressure ratings
The ZORO SELECT - 4381002840 is a stainless steel pipe flange designed for use as a pipe connection component in specified piping systems. It is a Schedule 10 Weld Neck Flange with a raised face connection surface, intended for use with gaskets and bolts to achieve a seal when installed properly. Manufactured from 316/316L stainless steel, this flange is rated for use in systems operating within the specifications of Class 150 pressure ratings and is compatible with a nominal pipe size of 3 inches. It is manufactured in accordance with applicable ASME standards, covering material grade, dimensional, and thread specifications.
Key Features:
- - Flange outside diameter: 7 1/2 in
- - Flange thickness: 15/16 in
- - Bolt circle diameter: 6 in
- - Number of bolt holes: 4
- - Bolt hole diameter: 3/4 in
- - Pipe fitting material: 316/316L Stainless Steel
- - Specific fitting shape: Schedule 10 Weld Neck Flange
- - Connection surface type: Raised Face
- - Pressure class rating: Class 150
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 7.50
- Package Height: 2.75
- Package Weight: 11.46
