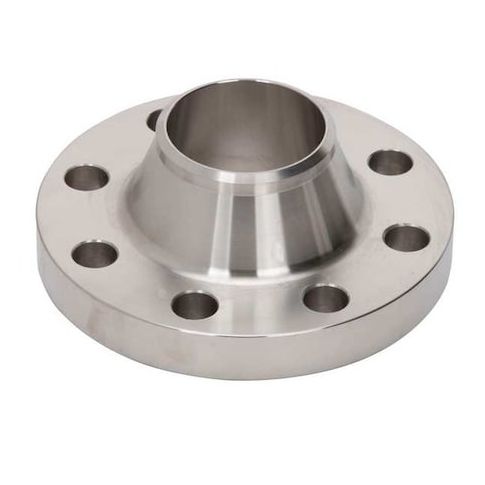

Flange, Stainless Steel, 4 5/8 in MPN:4381004810
This stainless steel 3/4 inch nominal pipe flange is a critical component for creating boltable, pressure-tight joints in piping systems. Manufactured to meet Schedule 80 specifications and conforming to ASME A182, ASME B1.20.1, and ASME B16.5 standards, it ensures reliable connections in high-pressure applications. Suitable for use in chemical processing, oil and gas, and power generation industries, this flange provides a durable and leak-resistant seal. Its raised face connection surface and 304/304L stainless steel construction ensure long-lasting performance and resistance to corrosion. With a Class 150 rating, it meets industry standards for pressure requirements.
Top product features:
- The flange is made from 304/304L stainless steel, suitable for creating boltable, pressure-tight joints in piping systems.
- The flange features a raised face connection surface.
- The flange conforms to ASME A182, ASME B1.20.1, and ASME B16.5 standards, which define the material, dimensional, and pressure requirements.
Top product applications:
- Chemical Processing
- Oil and Gas Industry
- Water Treatment Plants
The ZORO SELECT - 4381004810 is a stainless steel 3/4 inch nominal pipe flange manufactured to meet Schedule 80 specifications. It features a raised face connection surface and is manufactured from 304/304L stainless steel, suitable for creating boltable, pressure-tight joints in piping systems. The flange conforms to ASME A182, ASME B1.20.1, and ASME B16.5 standards, which define the material, dimensional, and pressure requirements. This flange is rated as Class 150 according to industry standards.
- - Material: 304/304L Stainless Steel
- - Nominal Pipe Size: 3/4 in
- - Specific Fitting Shape: Schedule 80 Weld Neck Flange
- - Pressure Class: Class 150
- - Connection Surface: Raised Face
- - Number of Bolt Holes: 4
- - Bolt Hole Diameter: 5/8 in
- - Bolt Circle Diameter: 2 3/4 in
- - Flange Outside Diameter: 4 9/16 in
- - Flange Thickness: 9/16 in
- - Compliance with Standards: ASME A182
- ASME B1.20.1
- ASME B16.5
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.62
- Package Width: 4.62
- Package Height: 2.25
- Package Weight: 2.87
