Flange, Stainless Steel, 4 1/4 in MPN:4381002620
Flange, Stainless Steel, 4 1/4 in

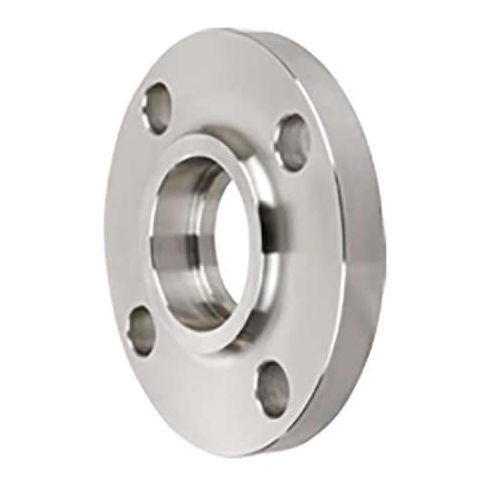

The ZORO SELECT - 4381002620 is a stainless steel pipe flange that is intended to be compatible with standard piping components for joining purposes.
It is constructed from 316/316L stainless steel. This Schedule 80 Socket Weld Flange has a raised face connection surface, which conforms to industry standards for pressure sealing when installed properly. It is rated for use with nominal pipe sizes of 1 inch and is classified as Class 150, indicating its pressure rating under ASME standards.
Key Features:
- - Material: 316/316L stainless steel for corrosion resistance.
- - Specific shape: Schedule 80 Socket Weld Flange.
- - Connection surface: Raised Face for effective sealing.
- - Nominal pipe size: 1 inch.
- - Pressure rating: Class 150.
- - Flange outside diameter: 4 1/4 in.
- - Flange thickness: 1/2 in.
- - Bolt circle diameter: 3 1/8 in with 4 bolt holes.
- - Bolt hole diameter: 5/8 in.
- - Manufactured to standards: ASME A182, ASME B1.20.1, and ASME B16.5.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.25
- Package Width: 4.25
- Package Height: 0.69
- Package Weight: 1.98
Product info last updated on February 7, 2026 1:10pm UTC
Category: Pipes, Valves and Fittings
