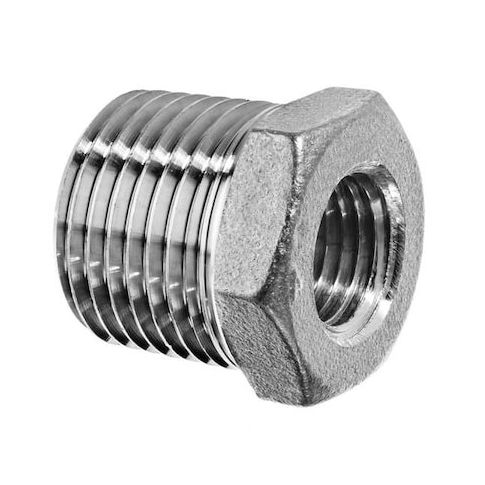

Hex Bushing, 304 Stainless Steel, 1/2 in Male BSPT x 3/8 in Female BSPT, Class 150 MPN:ZUSA-PF-8169

The ZORO SELECT - ZUSA-PF-8169 is a stainless steel pipe fitting designed to meet ASME/ANSI Class 150 pressure-temperature ratings. It features threaded connections with one male and one female end, rated for connection with piping systems conveying air, natural gas, oil, potable water, or steam. Constructed from 304 stainless steel, rated for use in low- to medium-pressure applications within industry standards. Its overall length is 13/16 inches, making it suitable for compact piping configurations.

Key Features:

• - Application: Compatible with Air, Natural Gas, Oil, Potable Water, Steam systems.
• - Class: Rated for ASME/ANSI Class 150 pressure standards.
• - Color: Silver.
• - Fitting Side A Gender: Male.
• - Side A Nominal Pipe Size: 1/2 in.
• - Side A Pipe Threading: 14.
• - Side A Type: BSPT.
• - Fitting Side B Gender: Female.
• - Side B Nominal Pipe Size: 3/8 in.
• - Side B Pipe Threading: 19.
• - Side B Type: BSPT.
• - Hex Size: 1 in.
• - Includes pre-applied thread sealant: no.
• - Includes seal: no.
• - Material Grade: 304.
• - Maximum Steam Pressure: 150 psi.
• - Maximum Operating Pressure: 150 psi.
• - Overall Length: 13/16 in.
• - Standards: ISO 7-1.
• - Low Lead Compliance Level: compliant.
