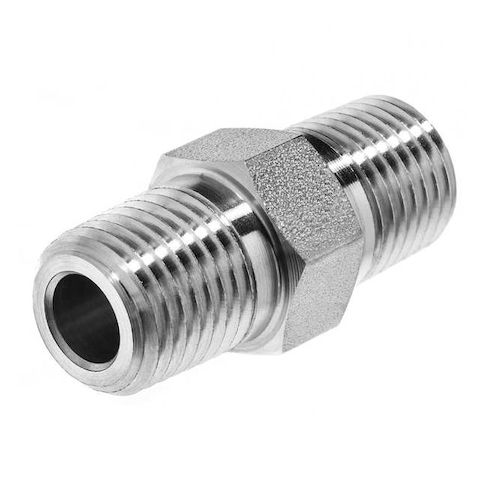

Adapter, Stainless Steel, 3/4 in NPT Male x 3/4 in BSPT Male, 316 Grade, 7, 300 psi Max Pressure MPN:ZUSA-PF-8780
Free Shipping
In Stock
The ZORO SELECT ZUSA-PF-8780 is a high-performance stainless steel instrumentation pipe fitting designed for connecting, redirecting, or terminating small-diameter tubing and piping. Made from 316 stainless steel, it provides joints rated for operation up to 7,300 psi, making it ideal for applications in industries such as oil and gas, chemical processing, and power generation. This fitting's high-pressure rating and corrosion-resistant material ensure reliable and long-lasting performance in demanding environments. Its compact design and male threaded connections make it easy to install and integrate into existing piping systems, making it a versatile and essential component for a wide range of industrial applications.
Top product features:
- Made from 316 stainless steel (AISI 316) material, it provides joints rated for operation up to 7,300 psi.
- Has a 3/4 in NPT male thread on one side and a 3/4 in BSPT male thread on the other side.
- Includes a hex size of 1 1/8 in for easy hand tightening.
Top product applications:
- Instrumentation pipe fitting for connecting, redirecting, or terminating small-diameter tubing and piping in high-pressure applications.
- Use in high-pressure systems such as hydraulic, pneumatic, or steam power systems.
- As a pipe adapter for connecting or redirecting tubing and piping in industrial processes, laboratories, or medical facilities.
The ZORO SELECT ZUSA-PF-8780 is a stainless steel instrumentation pipe fitting designed to connect, redirect, or terminate small-diameter tubing and piping. Made from 316 stainless steel (AISI 316) material, it provides joints rated for operation up to 7,300 psi.
Key Features:
- - Material: 316 stainless steel
- - Fitting Side A: Male threaded, 3/4 in NPT thread
- - Fitting Side A Threading: 14 threads-per-inch
- - Fitting Side A Type: NPT
- - Fitting Side B: Male threaded, 3/4 in BSPT
- - Fitting Side B Threading: 14 threads-per-inch
- - Fitting Side B Type: BSPT
- - Hex Size: 1 1/8 in
- - Includes Pre-Applied Thread Sealant: No
- - Includes Seal: No
- - Overall Length: 1 15/16 in
- - Maximum Operating Pressure: 7,300 psi
- - Standards: ANSI B31.1
- - Low Lead Compliance Level: Compliant
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.84
- Package Width: 1.23
- Package Height: 1.06
- Package Weight: 0.70
