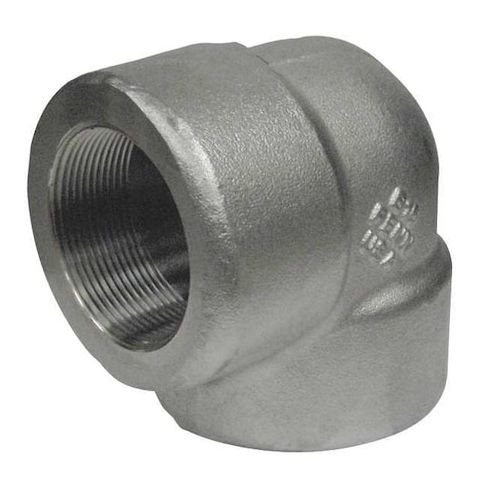

1" FNPT 304/304L SS 90 Degree Elbow MPN:2000300112
Maximize your fluid flow and minimize corrosion risks with the ZORO SELECT 2000300112, a 90-degree elbow made from durable 304/304L stainless steel. Perfect for industrial applications where a change in flow direction is required, this elbow ensures a secure and reliable connection between pipes. With a Class 3000 pressure rating and electro-polished surface, it provides exceptional corrosion resistance and durability. Suitable for use in chemical processing, oil and gas, and pharmaceutical industries, this elbow is a valuable addition to any fluid handling system, reducing the risk of leaks and downtime while maintaining optimal performance.
Top product features:
- 304/304L Stainless Steel construction for durability and corrosion resistance
- 90-degree directional change to facilitate a change in flow direction
- Electro-polished surface for enhanced corrosion resistance
Top product applications:
- Chemical Processing: The 1in FNPT 304/304L SS 90 Degree Elbow is suitable for use in chemical processing applications where corrosion resistance and high pressure ratings are required.
- Oil and Gas Industry: The elbow's Class 3000 pressure rating and corrosion-resistant 304/304L stainless steel construction make it a good fit for use in the oil and gas industry, particularly in applications involving high-pressure fluids.
- Hydraulic Systems: The 1in FNPT 304/304L SS 90 Degree Elbow can be used in hydraulic systems where high pressure and corrosion resistance are necessary, such as in power generation, manufacturing, and other industrial applications.
The ZORO SELECT 2000300112 is a 90 Degree Elbow made from stainless steel, designed to connect two pipes at a right angle to facilitate a change in flow direction. Compatibility with specific fluids is not specified
- rated for corrosion resistance and a Class 3000 pressure rating, with verification per applicable codes. Maximum rated pressure: 3,000 psi (Class 3000)
- maximum operating pressure at 100°F is 2,570 psi. It is constructed from 304/304L stainless steel for durability and corrosion resistance. Finish: Electro-polished surface providing corrosion resistance.
Key Features:
- - Material: 304/304L Stainless Steel for corrosion resistance and durability
- - Fitting Shape: Elbow with a 90-degree angle for directional change
- - Connection Type: FNPT end connections for threaded pipe joints
- - Maximum rated pressure: 3,000 psi (Class 3000)
- - Maximum operating pressure at 100°F: 2,570 psi
- - Finish: Electro-polished surface providing corrosion resistance
- - Ends: Fitting Side A and B both Female, with nominal size of 1 inch and outside diameter of 2 3/16 inches
- - Threading: Side A and B both have 11 1/2 TPI threaded ends
- - Standards: Conforms to ASTM A182/ASME SA182, ASME B16.11, ANSI B1.20.1
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 3.00
- Package Height: 2.80
- Package Weight: 2.42
