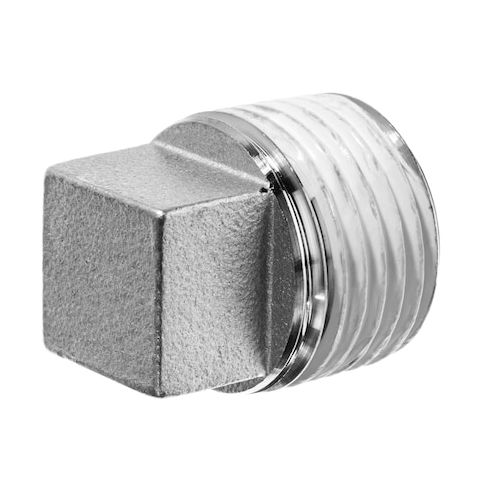

Square Head Plug, 304 Stainless Steel, 3/4 in, MNPT, Class 150 MPN:ZUSA-PF-347

• The ZORO SELECT - ZUSA-PF-347 is a stainless steel square head plug intended to seal the end of a threaded pipe, coupling, or fitting via MNPT connections. Made from 304 stainless steel, it provides corrosion resistance inherent to 304 stainless steel for various industrial and plumbing systems. The plug features male national pipe thread (MNPT) connections with a nominal pipe size of 3/4 inch, and it is rated for Maximum Operating Pressure: 150 psi

• Maximum Steam Pressure: 150 psi. It operates within a temperature range of 0 to 360 degrees Fahrenheit and conforms to ASTM A351 and ANSI/ASME B1.20.1 standards. Key Features:

  • - Material Grade: 304 Stainless Steel
  • - Fitting Shape: Square Head Plug
  • - Connection Type: Male National Pipe Thread (MNPT)
  • - Nominal Pipe Size: 3/4 inch
  • - Maximum Operating Pressure: 150 psi
  • - Maximum Steam Pressure: 150 psi
  • - Temperature Range: 0 to 360 Degrees Fahrenheit
  • - Includes Pre-Applied PTFE Thread Sealant
  • - Standards: ASTM A351, ANSI/ASME B1.20.1
  • - Overall Length: 1 1/16 inches
  • - Outside Diameter: 3/4 inch
