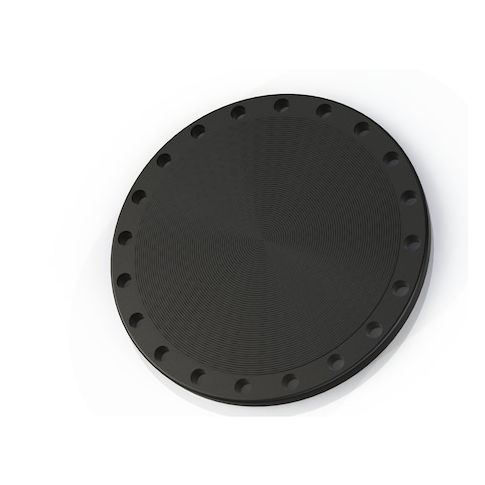

Blind Flange, Carbon Steel, 16 in, 150 lb, Raised Face MPN:FL1RB16
Free Shipping
In Stock
The GoVets Select Blind Flange is a reliable and versatile solution for sealing pipe, valve, or pressure vessel openings in various industrial applications. Suitable for use with gas, non-potable water, and oil, this carbon steel flange provides a secure and leak-free connection. Its raised face design and bolted construction ensure maximum pressure containment. With a 150 lb pressure rating and 16 inch nominal pipe size, this flange is ideal for use in piping systems, chemical processing, and oil and gas industries. Its durability and ease of installation make it a valuable addition to any industrial setup.
Top product features:
- Seals off the end of a pipe, valve, or pressure vessel opening to form a sealed termination in a piping system.
- Rated for use with gas, non-potable water, and oil within specified conditions.
- Features a raised face connection surface and is bolted to mating flanges with a gasket for pressure containment.
Top product applications:
- Pipe termination in a piping system
- Pressure vessel opening closure
- Gas, non-potable water, or oil piping system termination
The ZORO SELECT - FL1RB16 is a blind flange designed to close off the end of a pipe, valve, or pressure vessel opening, forming a sealed termination in a piping system. Made from carbon steel, this flange is rated for use with gas, non-potable water, and oil within specified conditions. It features a raised face connection surface and is bolted to mating flanges with a gasket for pressure containment. This flange is rated for a nominal pipe size of 16 inches and has a flange outside diameter of 23 1/2 inches.
Key Features:
- - Fitting connection type: Blind flange
- - Pressure rating class: 150
- - Rated for maximum operating pressure of 150 psi within specified conditions
- - Number of bolt holes: 16
- - Connection surface: Raised face
- - Nominal pipe size: 16 inches
- - Material: Carbon steel
- - Conforms to applicable standards ASME B16.5 and ASTM A/SA-105
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 48.00
- Package Width: 42.00
- Package Height: 12.00
- Package Weight: 229.00
