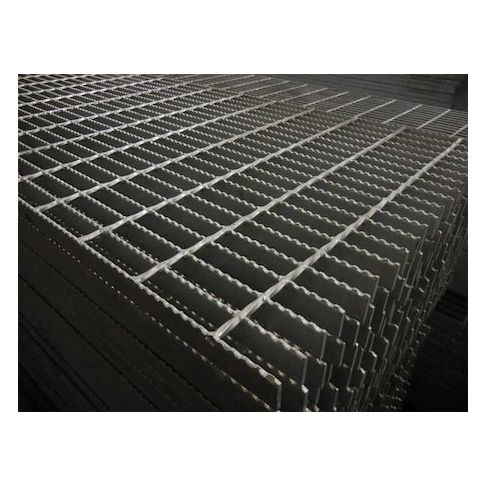

Carbon Steel Bar Grating, Serrated, 72 in L, 24 in W, 1.0 in H, Galvanized Steel Finish MPN:22188R100-B6
Carbon Steel Bar Grating, Serrated, 72 in L, 24 in W, 1.0 in H, Galvanized Steel Finish
Durable and versatile, this carbon steel bar grating is perfect for a variety of applications, including driveway drains, floor drains, storm water drains, and trench drains. The serrated top surface provides excellent traction and slip resistance, making it ideal for use in high-traffic areas. With a galvanized steel finish, it offers superior corrosion resistance and can withstand harsh outdoor environments. Measuring 6 feet long and 2 feet wide, it can be used to cover large areas and provide a secure and stable surface for pedestrian and vehicular traffic. Its sturdy design and durable construction make it a reliable choice for any project.
Top product features:
- The product has a serrated top surface for improved traction.
- The grating has a bearing bar spacing of 1 3/16 inches for strength and stability.
- The grating is designed to support loads of up to 947 pounds per square foot at an unsupported length of 2 feet.
Top product applications:
- Driveway Drains
- Floor Drains
- Storm Water Drains
Carbon Steel Bar Grating, Material Carbon Steel, Material Grade A1011, Overall Height 1 in, Overall Width 24 in, Overall Length 6 ft, Cross Bar Spacing 4 in, Bearing Bar Spacing 1 3/16 in, Bearing Bar Thickness 3/16 in, Top Surface Serrated, Weight 89 lb, Application Driveway Drains, Floor Drains, Storm Water Drains, Trench Drains, Finish Galvanized Steel, For Use Indoors/Outdoors Outdoor, Rating @ Unsupported Length 947 lb/sq ft @ 2 ft, Shape Rectangular, Standards ISO 9001:2015
Additional Information
- Country of Origin: TW
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 72.00
- Package Width: 24.00
- Package Height: 7.00
- Package Weight: 128.80
Product info last updated on March 30, 2026 4:34am UTC
Category: Carbon Steel
