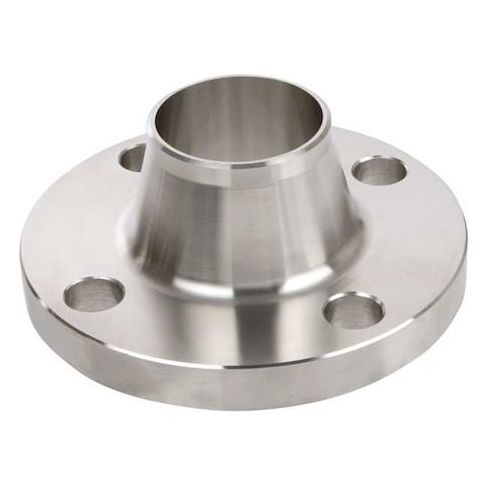

6 in Schedule 40 Weld Neck Flange, Raised Face, 304/304L Stainless Steel MPN:4381001500
The ZORO SELECT stainless steel pipe flange is designed for use in various industries, including chemical processing, food and beverage, and pharmaceuticals, where corrosion resistance is crucial. Its 304/304L stainless steel construction ensures durability and resistance to corrosion within specified conditions. The raised face connection surface provides a secure seal, while the 8 bolt holes of 7/8-inch diameter facilitate easy fastening. Suitable for use with fittings conforming to industry standards, this flange is ideal for applications requiring high-quality connections and reliable performance. Its compact size and weight make it easy to handle and install.
Top product features:
- The flange features a raised face connection surface for sealing purposes.
- It has 8 bolt holes of 7/8-inch diameter for secure fastening.
- The flange is manufactured from 304/304L stainless steel, known for its corrosion resistance within specified conditions.
Top product applications:
- Chemical Processing
- High-Temperature Applications
- Petrochemical Industry
The ZORO SELECT - 4381001500 is a stainless steel pipe flange with a raised face connection surface. It features a 11-inch outside diameter, a 1-inch flange thickness, and a bolt circle diameter of 9 1/2 inches. Designed with 8 bolt holes of 7/8-inch diameter, it is manufactured from 304/304L stainless steel, which is known for its corrosion resistance within specified conditions. Manufactured from 304/304L stainless steel, conforming to industry standards for interchangeability.
Key Features:
- - Bolt Circle Diameter: 9 1/2 in, rated for use with fittings conforming to industry standards
- - Diameter of Bolt Holes: 7/8 in, compatible with bolts of specified sizes
- - Connection Surface: Raised Face, designed with a raised face for sealing purposes
- - Flange Outside Diameter: 11 in, specified by the flange's dimensions
- - Flange Thickness: 1 in, manufactured with a 1-inch thickness as specified
- - Number of Bolt Holes: 8, includes 8 bolt holes of specified diameter for fastening
- - Material Grade: 304/304L Stainless Steel, manufactured from stainless steel grade 304/304L
- - Specific Fitting Shape: Schedule 40 Weld Neck Flange
- - Standards: ASME A182, ASME B16.5, indicating adherence to recognized industry specifications
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 11.00
- Package Height: 3.50
- Package Weight: 24.25
