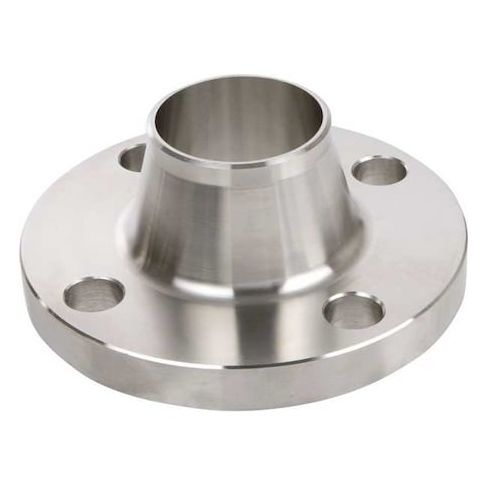

Pipe Flange, Schedule 10, 4 in, 304/304L Stainless Steel, Raised Face, 8 Bolt Holes MPN:4381001270

The ZORO SELECT - 4381001270 is a 4-inch Nominal Pipe Size Schedule 10 Weld Neck Pipe Flange made from 304/304L stainless steel. It features a raised face connection surface and is intended for bolted connection to pipes, valves, pumps, or equipment as specified. This stainless steel flange is capable of forming a seal when used with gaskets and bolts in accordance with standard procedures, ensuring a pressure-tight joint with gaskets and bolts. Its standardized face type and bolt pattern allow for interchangeability in piping systems.

Key Features:

• - Material: 304/304L Stainless Steel, manufactured from corrosion-resistant materials as specified.
• - Specific Fitting Shape: Schedule 10 Weld Neck Flange for a for welding as per standard welding practices.
• - Bolt Circle Diameter: 7 1/2 in, measuring center-to-center across opposing bolt holes.
• - Number of Bolt Holes: 8, for boltable attachment.
• - Bolt Hole Diameter: 3/4 in, accommodating standard bolt sizes.
• - Flange Outside Diameter: 9 in, overall size of the flange.
• - Flange Thickness: 15/16 in, measured perpendicular to the flange face.
• - Connection Surface: Raised Face, enhancing sealing capability with gaskets designed for this flange type.
• - Standards: ASME A182 and ASME B16.5, indicating compliance with industry specifications for material and dimensional standards.
