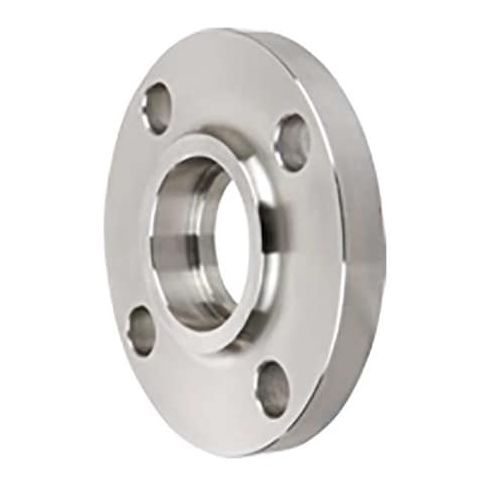

Socket Weld Flange, Schedule 40, 1 1/2 in Nominal Pipe Size, 316/316L Stainless Steel MPN:4381002440
This stainless steel socket weld flange is designed to connect pipes, valves, pumps, and equipment in various industrial applications. Made from corrosion-resistant 316/316L stainless steel, it provides a secure and reliable connection. The raised face connection surface ensures compatibility with industry standards, while the four bolt holes facilitate easy installation. Suitable for applications requiring standardized bolt patterns and corrosion resistance, this flange is ideal for use in chemical processing, oil and gas, and food and beverage industries. Its durability and resistance to corrosion make it a reliable choice for demanding environments.
Top product features:
- The flange has a raised face connection surface as specified by industry standards.
- The flange is made from 316/316L stainless steel, suitable for applications requiring corrosion resistance.
- The flange has four bolt holes for connection, with a bolt circle diameter of 3 7/8 in, and bolt hole diameter of 5/8 in.
Top product applications:
- Connecting pipes in industrial settings
- Connecting valves to pipes in process plants
- Connecting pumps to pipes in water treatment facilities
The ZORO SELECT - 4381002440 is a stainless steel pipe flange designed to connect pipes, valves, pumps, or equipment according to industry standards. Equipped with a raised face connection surface as specified by industry standards. With an outside diameter of 5 inches, thickness of 11/16 inches, with four 5/8-inch bolt holes. It is designed to conform to industry standards ASME A182, ASME B1.20.1, and ASME B16.5, and is made from 316/316L stainless steel, suitable for applications within specified conditions requiring corrosion resistance and standardized bolt patterns.
Key Features:
- - Bolt Circle Diameter: 3 7/8 in, as specified for flange compatibility.
- - Bolt Hole Diameter: 5/8 in, as specified for securing the flange.
- - Class: 150, indicating the pressure rating as per industry standards.
- - Connection surface: Raised Face, as per industry standards.
- - Outside diameter of 5 in.
- - Thickness: 11/16 in.
- - Nominal pipe size: 1 1/2 in.
- - Four bolt holes for connection.
- - Made from 316/316L stainless steel, suitable for corrosion resistance.
- - Schedule 40 socket weld flange, indicating connection type.
- - conforms to applicable ASME standards.
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 5.00
- Package Height: 0.88
- Package Weight: 3.31
