Weld Neck Flange Pipe Flange, 3" Pipe, Flanged x Weld Neck, Steel, Class 1500 MPN:BULK-PF-569
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G700424783

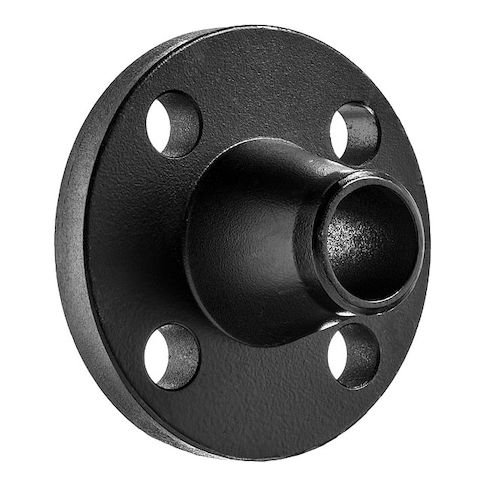

Weld Neck Flange Pipe Flange, 3" Pipe, Flanged x Weld Neck, Steel, Class 1500
Upgrade your piping system with the Weld Neck Flange Pipe Flange from GoVets Select. Designed for high-pressure applications, this flange features a 3in pipe size, raised face, and a maximum operating pressure of 3,600 psi at 72°F. Made from durable steel, it's perfect for use in steam power plants, chemical processing, and oil and gas industries. The black coated A105 steel construction ensures long-lasting performance in temperatures ranging from 80°F to 780°F. With a 10 1/2in overall length and 8 bolt holes, this flange is easy to install and provides a secure connection for your piping system.
Top product features:
- Raised flange design provides a secure seal between the flange and pipe
- Weld neck design allows for a strong and leak-free connection to the pipe
- Maximum operating pressure of 3,600 psi ensures safe and reliable performance in high-pressure applications
Top product applications:
- Oil and Gas Industry
- Chemical Processing Plants
- Power Generation Facilities
Flange, Raised, 3 in Nominal Pipe Size, Flanged x Weld Neck, 10 1/2 in Flange Outside Diameter, 1 7/8 in Flange Thickness, 10 1/2 in Overall Length, Steel, Black Coated, A105, Class Class 1500, For Pipe Schedule Schedule XXH, 3,600 psi @ 72 Degrees F Maximum Operating Pressure, 3,600 psi Max. Steam Pressure, 80 Degrees to 780 Degrees F, Number of Bolt Holes 8, 8 in Bolt Circle Diameter, 1 1/4 in Bolt Hole Diameter
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.23
- Package Width: 2.18
- Package Height: 3.23
- Package Weight: 1.21
Product info last updated on March 21, 2026 11:05pm UTC
Category: Pipes, Valves and Fittings
